GS1A Surface Mount General Purpose Rectifier

GS1A Description

GS1A THRU GS1M Surface Mount General Purpose Rectifier RoHS COMPLIANT .

GS1A Features

* Low profile package
* Ideal for automated placement
* Glass passivated chip junction
* High forward surge capability

GS1A Applications

* For use in general purpose rectification of power supplies, inverters, converters, and freewheeling diodes for consumer and telecommunication. Mechanical Data
* Package: DO-214AC (SMA) Molding compound meets UL 94 V-0 flammability rating, RoHS-compliant, halogen-free
* Terminals: Tin plated

📥 Download Datasheet

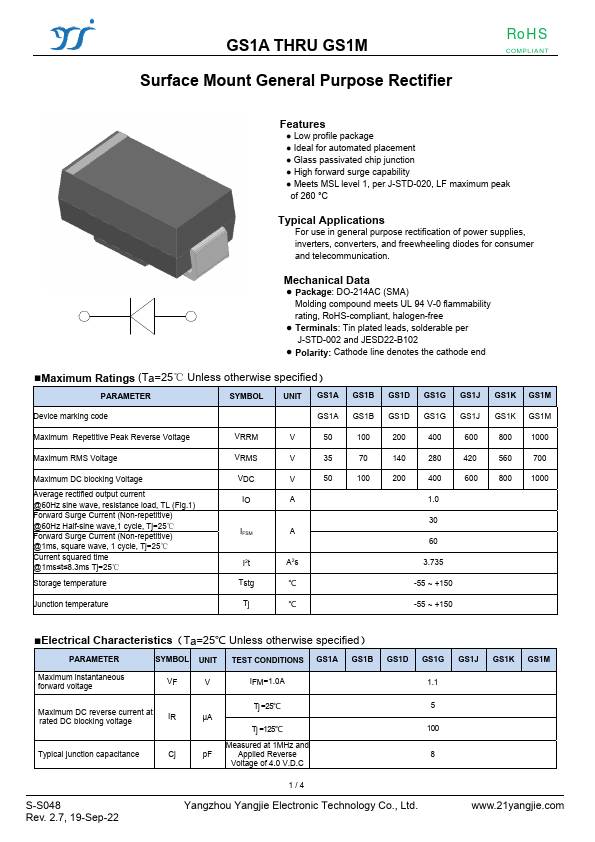

Preview of GS1A PDF

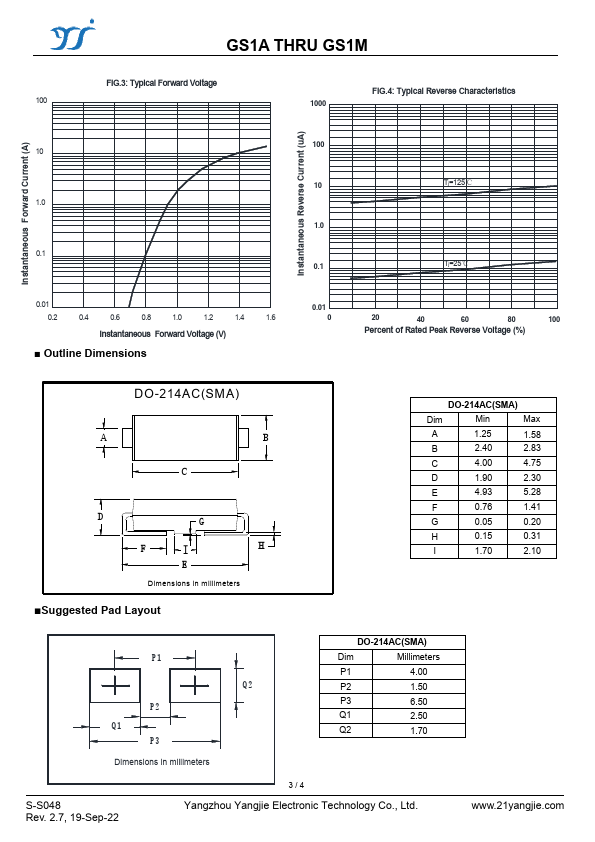

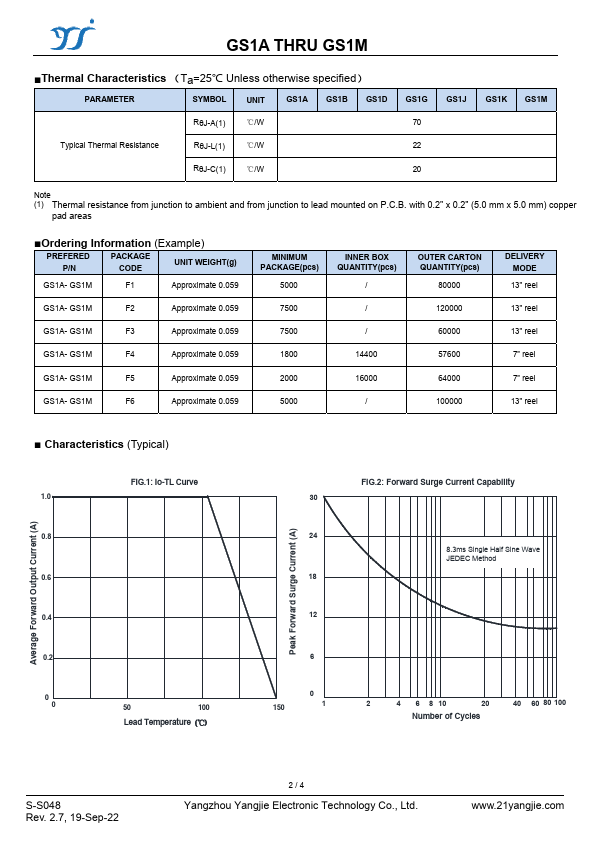

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
GS1A
Manufacturer
Yangzhou Yangjie
File Size
210.35 KB
Datasheet
GS1A-YangzhouYangjie.pdf
Description
Surface Mount General Purpose Rectifier
