GS1D - Surface Mount General Purpose Rectifier

Product Overview

Yangzhou Yangjie

📥 Download Datasheet

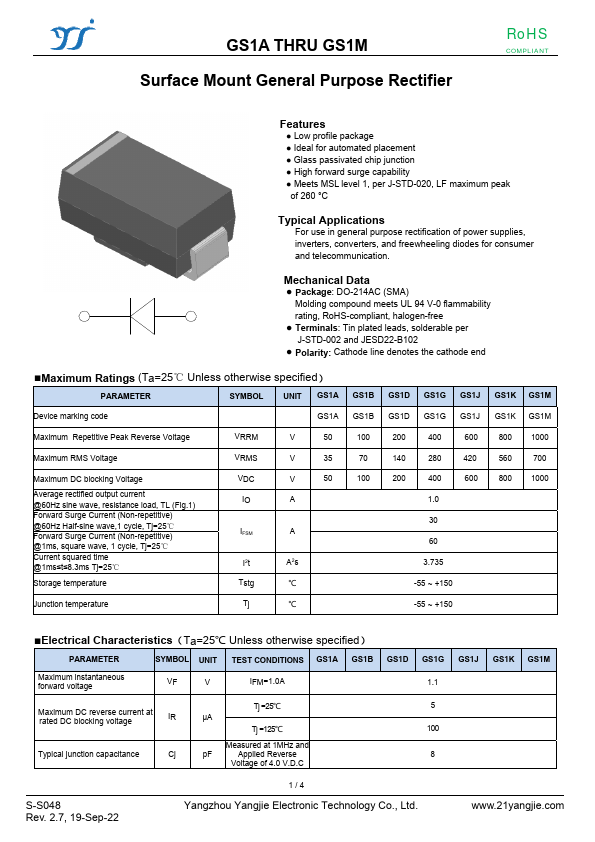

GS1D Surface Mount General Purpose Rectifier by Yangzhou Yangjie - Datasheet Preview — Datasheet preview – GS1D

Datasheet Details

Part number	GS1D
Manufacturer	Yangzhou Yangjie
File Size	210.35 KB
Description	Surface Mount General Purpose Rectifier
Datasheet	GS1D Datasheet
Note	This datasheet PDF includes multiple part numbers: GS1D, GS1A. Please refer to the document for exact specifications by model.

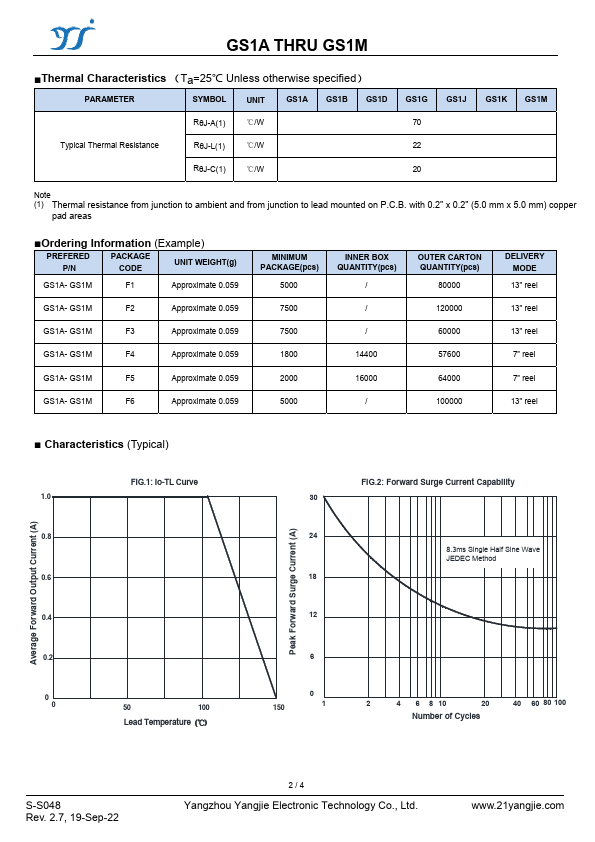

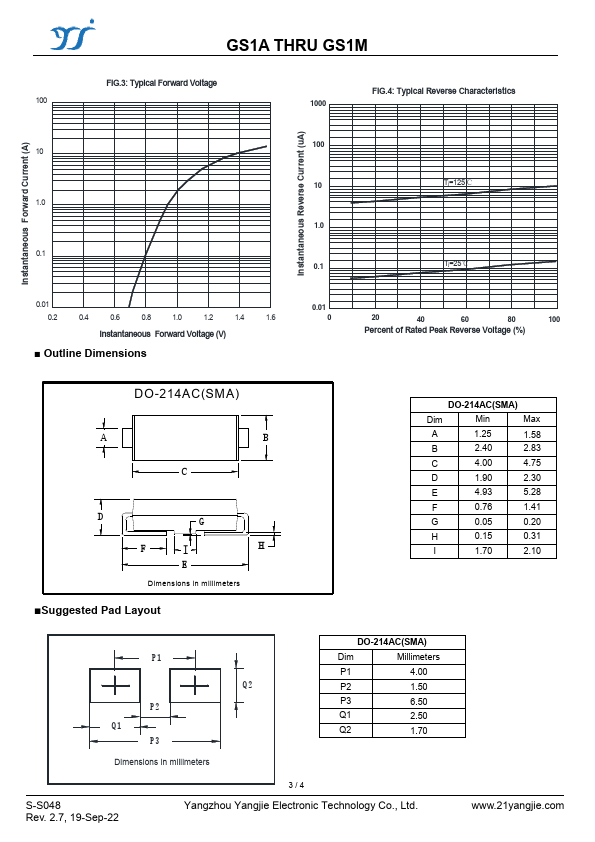

Additional preview pages of the GS1D datasheet.

Product details

Features

Low profile package.
Ideal for automated placement.
Glass passivated chip junction.
High forward surge capability.
Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C Typical.
