HER158G - High Efficient Rectifier

Product Overview

Yangzhou Yangjie

Part number	HER158G
Manufacturer	Yangzhou Yangjie
File Size	214.71 KB
Description	High Efficient Rectifier
Datasheet	HER158G Datasheet
Note	This datasheet PDF includes multiple part numbers: HER158G, HER151G. Please refer to the document for exact specifications by model.

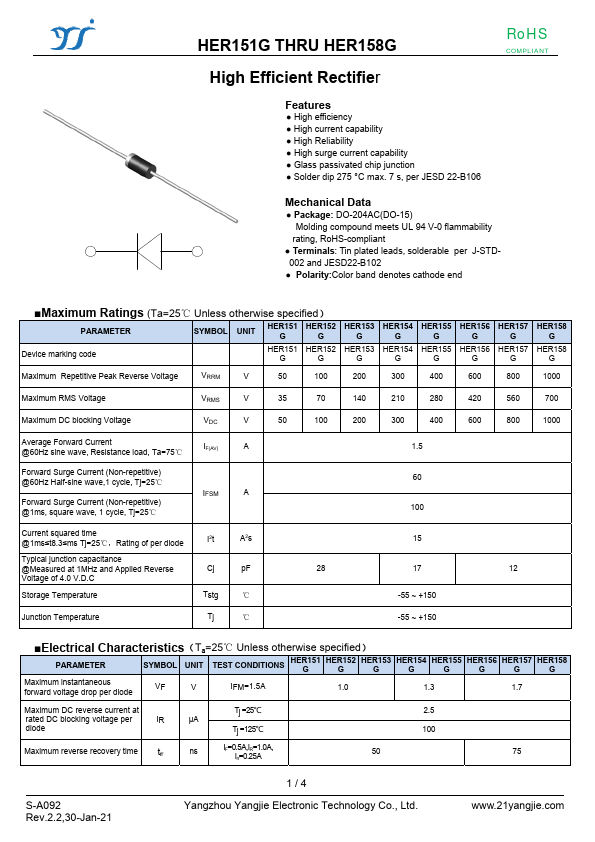

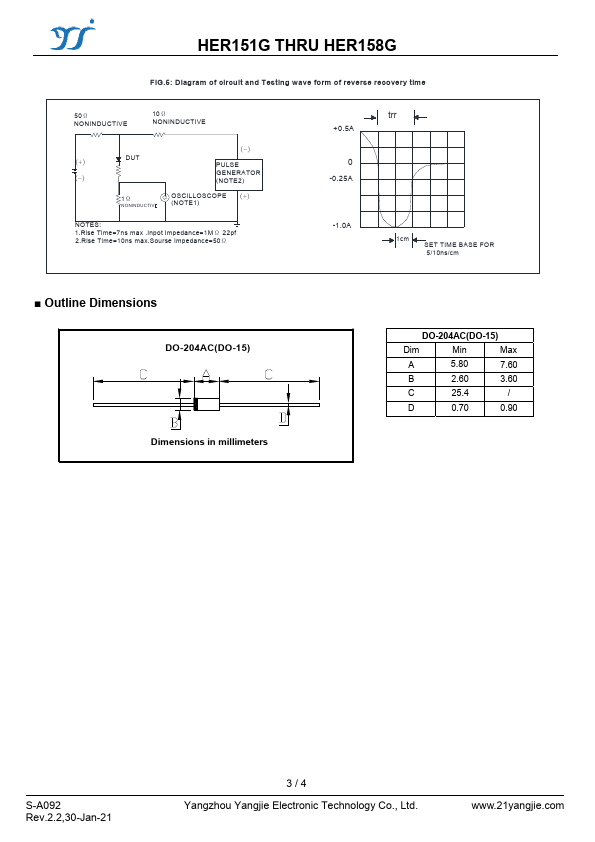

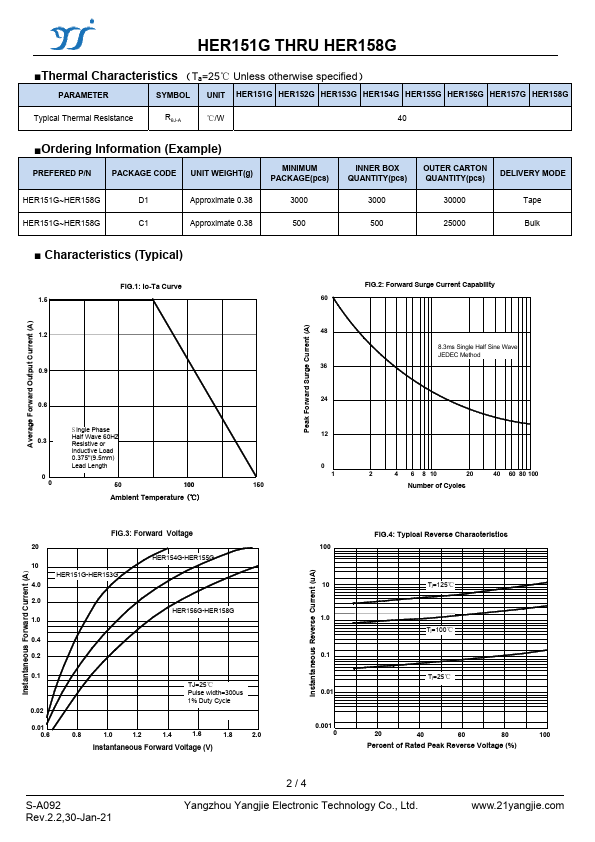

Additional preview pages of the HER158G datasheet.

High efficiency.
High current capability.
High Reliability.
High surge current capability.
Glass passivated chip junction.
Solder dip 275 °C max. 7 s, per JESD 22-B106 Mechanical Data.
Package: DO-204AC(DO-15) Molding compound meets UL 94 V-0 flammability rating, RoHS-compliant.
Terminals: Tin plated leads, solderable per J-STD002 and JESD22-B102.
Polarity:Color band denotes cathode end.
Maximum Ratings (Ta=25℃ Unless otherwise specified） PARA.
