HER501G - High Efficient Rectifier

Datasheet Summary

Features

  • High efficiency.
  • High current capability.
  • High Reliability.
  • High surge current capability.
  • Glass passivated chip junction.
  • Solder dip 275 °C max. 7 s, per JESD 22-B106   Mechanical Data.
  • Package: DO-201AD(DO-27) Molding compound meets UL 94 V-0 flammability rating, RoHS-compliant.
  • Terminals: Tin plated leads, solderable per J-STD002 and JESD22-B102.
  • Polarity:Color band denotes cathode end.
  • Maximum Ratings (Ta=25℃ Unless otherwise specified） PAR.

📥 Download Datasheet

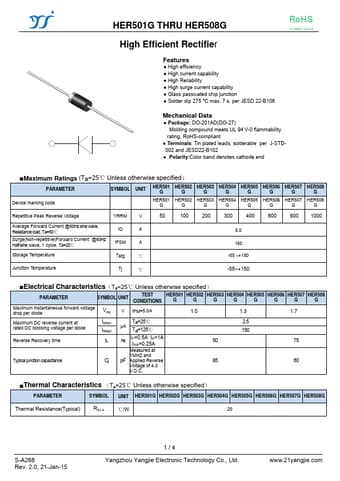

Datasheet preview – HER501G
