MBR2045CD Datasheet - Yangzhou Yangjie

MBR2045CD, Schottky Diodes

Pin 2 Pin 3 Pin 1 MBR2045CD RoHS COMPLIANT Schottky Diodes .

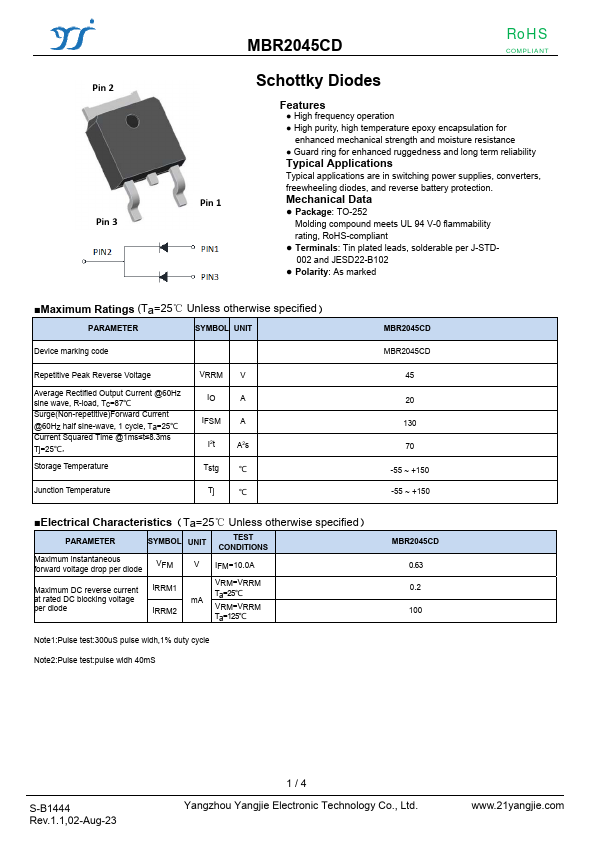

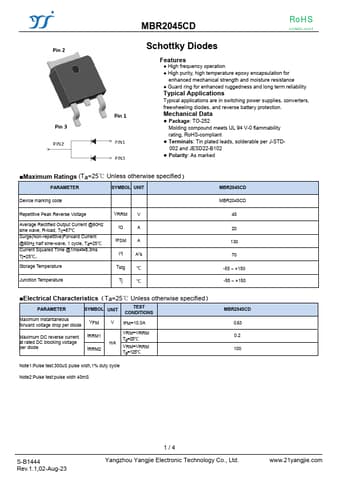

datasheet Preview Page 1 from Datasheet4u.com

MBR2045CD-YangzhouYangjie.pdf

MBR2045CD Datasheet Preview — Preview of MBR2045CD PDF

Datasheet Details

Part number:

MBR2045CD

Manufacturer:

Yangzhou Yangjie

File Size:

228.42 KB

Description:

Schottky Diodes

Features

* High frequency operation
* High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance

Applications

* Typical applications are in switching power supplies, converters, freewheeling diodes, and reverse battery protection. Mechanical Data
* Package: TO-252 Molding compound meets UL 94 V-0 flammability rating, RoHS-compliant
* Terminals: Tin plated leads, solderable per J-STD- 002 and JESD22-B1
