MD160S16M3, MD160S08M3 Datasheet - Yangzhou Yangjie

MD160S16M3 Glass Passivated Three Phase Rectifier Bridge

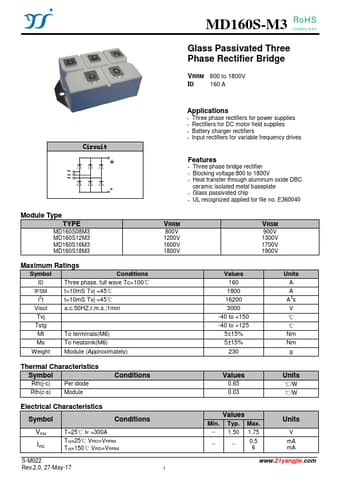

MD160S-M3 RoHS COMPLIANT Glass Passivated Three Phase Rectifier Bridge VRRM 800 to 1800V ID 160 A Circuit + ~~~ - Module Type TYPE MD160S08M3 MD160S12M3 MD160S16M3 MD160S18M3 Maximum Ratings Symbol Conditions ID Three phase, full wave Tc=100℃ IFSM i2t t=10mS Tvj =45℃ t=10mS Tvj =45℃ Visol a.c.50HZ;r.m.s.;1min Tvj Tstg Mt To terminals(M6) Ms To heatsink(M6) Weight Module (Approximately) Thermal Characteristics Symbol Rth(j-c) Per diode Rth(c-s) Module Conditions Electrical Char.

MD160S16M3 Features

* Three phase bridge rectifier

* Blocking voltage:800 to 1800V

* Heat transfer through aluminum oxide DBC ceramic isolated metal baseplate

* Glass passivated chip

* U

MD160S08M3-YangzhouYangjie.pdf

MD160S16M3 Datasheet Preview — This datasheet PDF includes multiple part numbers: MD160S16M3, MD160S08M3. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

MD160S16M3, MD160S08M3

Manufacturer:

Yangzhou Yangjie

File Size:

115.02 KB

Description:

Glass passivated three phase rectifier bridge.

Note:

This datasheet PDF includes multiple part numbers: MD160S16M3, MD160S08M3.
Please refer to the document for exact specifications by model.
