MT1512A, MT1504A Three Phase Bridge Rectifiers

Yangzhou Yangjie

Description

MT1504A THRU MT1516A Three Phase Bridge Rectifiers .

📥 Download Datasheet

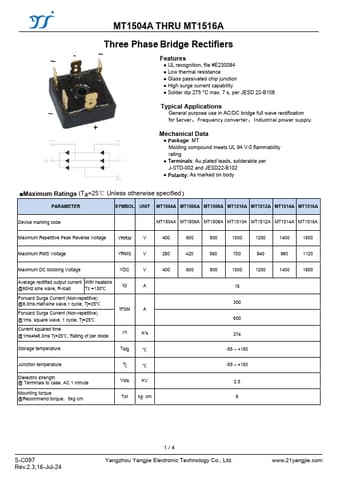

MT1512A Datasheet Preview — This datasheet PDF includes multiple part numbers: MT1512A, MT1504A. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: MT1512A, MT1504A
Manufacturer: Yangzhou Yangjie
File Size: 321.16 KB
Datasheet: MT1504A-YangzhouYangjie.pdf
Description: Three Phase Bridge Rectifiers
Note: This datasheet PDF includes multiple part numbers: MT1512A, MT1504A.
Please refer to the document for exact specifications by model.

Features

* UL recognition, file #E230084
* Low thermal resistance
* Glass passivated chip junction
* High surge current capability

Applications

* General purpose use in AC/DC bridge full wave rectification for Server、Frequency converter、Industrial power supply. Mechanical Data
* Package: MT Molding compound meets UL 94 V-0 flammability rating
* Terminals: Au plated leads, solderable per J-STD-002 and JESD22-B102
* Polarity: As mar
