MT2504A Three Phase Bridge Rectifiers

MT2504A Description

MT2504A THRU MT2516A Three Phase Bridge Rectifiers .

MT2504A Features

* UL recognition, file #E230084
* Low thermal resistance
* Glass passivated chip junction
* High surge current capability

MT2504A Applications

* General purpose use in AC/DC bridge full wave rectification for Server、Frequency converter、Industrial power supply. Mechanical Data
* Package: MT Molding compound meets UL 94 V-0 flammability rating
* Terminals: Au plated leads, solderable per J-STD-002 and JESD22-B102
* Polarity: As mar

📥 Download Datasheet

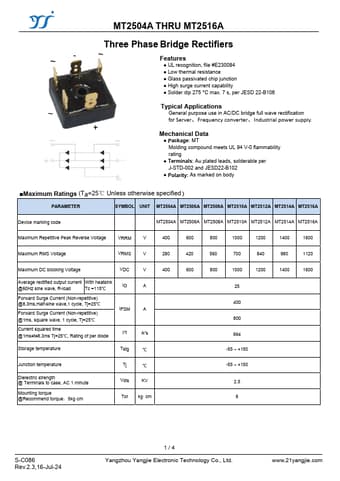

Preview of MT2504A PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MT2504A
Manufacturer
Yangzhou Yangjie
File Size
321.17 KB
Datasheet
MT2504A-YangzhouYangjie.pdf
Description
Three Phase Bridge Rectifiers
