MUR1060DL Ultra-Fast Recovery Diode

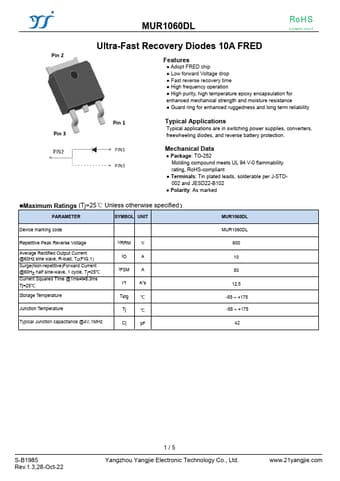

📥 Download Datasheet Datasheet Preview Page 1

Description

MUR1060DL RoHS COMPLIANT Pin 2 Pin 3 Ultra-Fast Recovery Diodes 10A FRED .

📥 Download Datasheet

Preview of MUR1060DL PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
MUR1060DL
Manufacturer
Yangzhou Yangjie
File Size
247.28 KB
Datasheet
MUR1060DL-YangzhouYangjie.pdf
Description
Ultra-Fast Recovery Diode

Features

* Adopt FRED chip
* Low forward Voltage drop
* Fast reverse recovery time
* High frequency operation
* High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance
* Guard ring for enhanced ruggedness and long term reliability Pi

Applications

* Typical applications are in switching power supplies, converters, freewheeling diodes, and reverse battery protection. Mechanical Data
* Package: TO-252 Molding compound meets UL 94 V-0 flammability rating, RoHS-compliant
* Terminals: Tin plated leads, solderable per J-STD002 and JESD22-B10

MUR1060DL Distributors
