MUR1260L - Ultra-Fast Recovery Diode

MUR1260L Description

MUR1260L RoHS COMPLIANT Ultra-Fast Recovery Diodes 12A FRED .

MUR1260L Features

* Adopt FRED chip
* Low forward Voltage drop
* Fast reverse recovery time
* High frequency operation
* High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance
* Guard ring for enhanced ruggedness and long term reliability Typ

MUR1260L Applications

* Typical applications are in switching power supplies, converters, freewheeling diodes, and reverse battery protection. Mechanical Data
* Package: TO-220AC Molding compound meets UL 94 V-0 flammability rating, RoHS-compliant
* Terminals: Tin plated leads, solderable per J-STD002 and JESD22-B1

📥 Download Datasheet

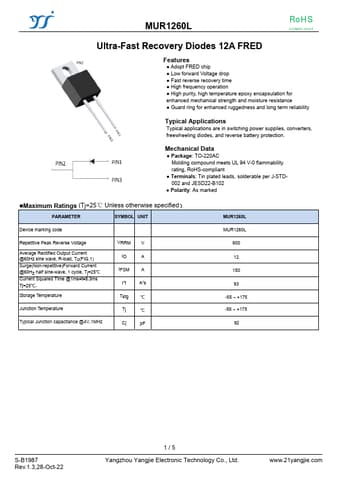

Preview of MUR1260L PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MUR1260L
Manufacturer
Yangzhou Yangjie
File Size
237.15 KB
Datasheet
MUR1260L-YangzhouYangjie.pdf
Description
Ultra-Fast Recovery Diode
