RL257G - General Purpose Rectifier

Yangzhou Yangjie

📥 Download Datasheet

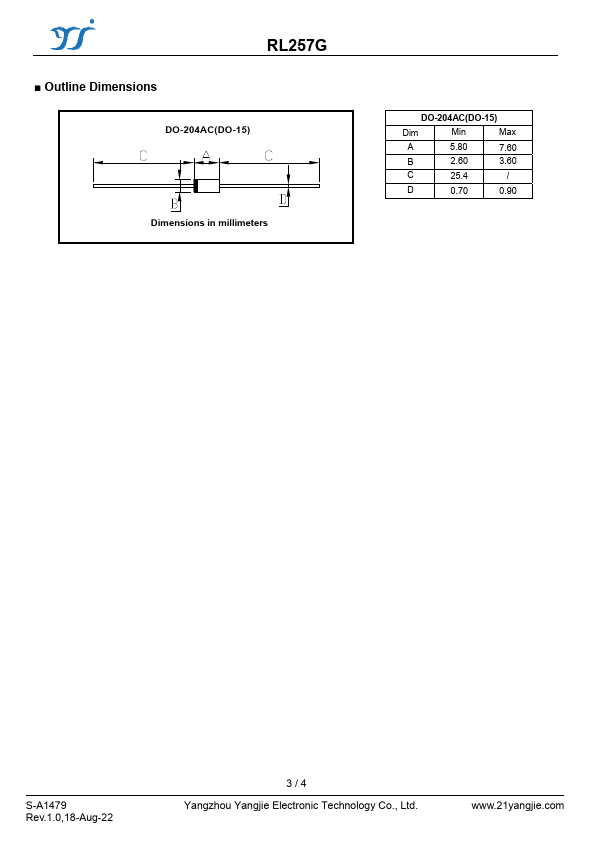

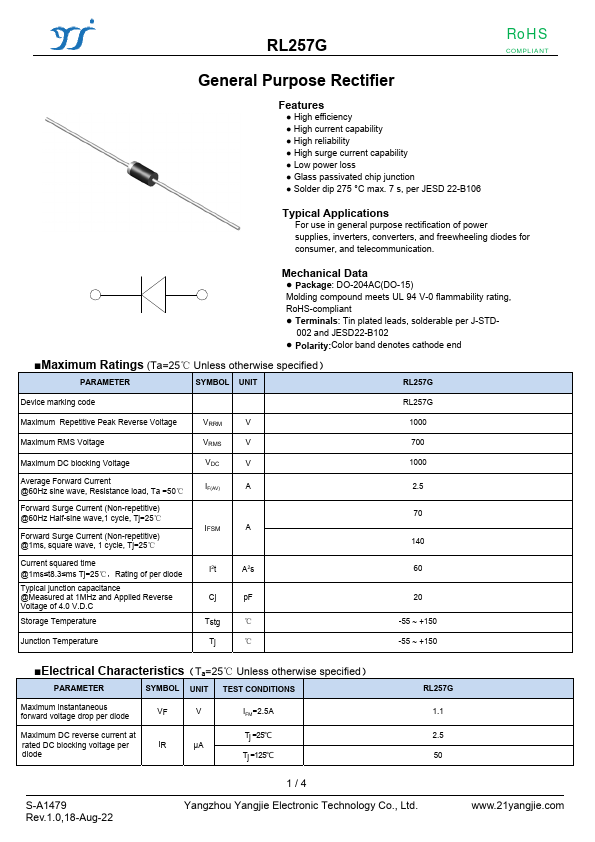

RL257G Datasheet Preview — Preview of RL257G PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	RL257G
Manufacturer	Yangzhou Yangjie
File Size	206.55 KB
Description	General Purpose Rectifier
Datasheet	RL257G-YangzhouYangjie.pdf

RL257G Product details

Features

High efficiency.
High current capability.
High reliability.
High surge current capability.
Low power loss.
Glass passivated chip junction.
Solder dip 275 °C max. 7 s, per JESD 22-B106 Typical.
