SF57G, SF51G, Super Fast Recovery Rectifier

SF51G THRU SF58G RoHS COMPLIANT Super Fast Recovery Rectifier .

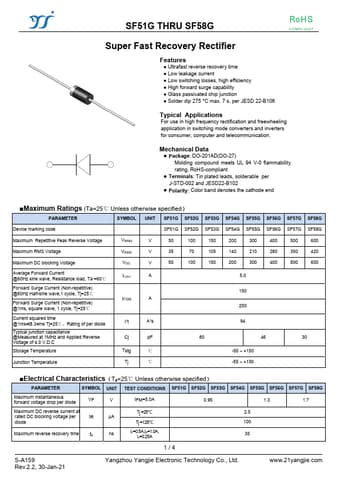

datasheet Preview Page 1 from Datasheet4u.com

SF51G-YangzhouYangjie.pdf

SF57G Datasheet Preview — This datasheet PDF includes multiple part numbers: SF57G, SF51G. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SF57G, SF51G

Manufacturer:

Yangzhou Yangjie

File Size:

236.64 KB

Description:

Super Fast Recovery Rectifier

Note:

This datasheet PDF includes multiple part numbers: SF57G, SF51G.
Please refer to the document for exact specifications by model.

Features

* Ultrafast reverse recovery time
* Low leakage current
* Low switching losses, high efficiency
* High forward surge capability
* Glass passivated chip junction

Applications

* For use in high frequency rectification and freewheeling application in switching mode converters and inverters for consumer, computer and telecommunication. Mechanical Data
* Package: DO-201AD(DO-27) Molding compound meets UL 94 V-0 flammability rating, RoHS-compliant
* Terminals: Tin plate
