ZMM55B3V9, ZMM55C2V0 Zener Diodes

ZMM55B3V9 Description

ZMM55 SERIES Zener Diodes .

ZMM55B3V9 Features

* Ptot 500mW
* Vz 2.4V-75V RoHS COMPLIANT
* Limiting Values (Absolute Maximum Rating) Item Power dissipation Zener current Maximum junction temperature Storage temperature range Symbol Ptot IZ Tj Tstg Unit mW mA ℃ ℃ Conditions L=4mm,TL=25℃ Ptot /VZ Max 500 See Table 175 -65 to +175

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: ZMM55B3V9, ZMM55C2V0. Please refer to the document for exact specifications by model.

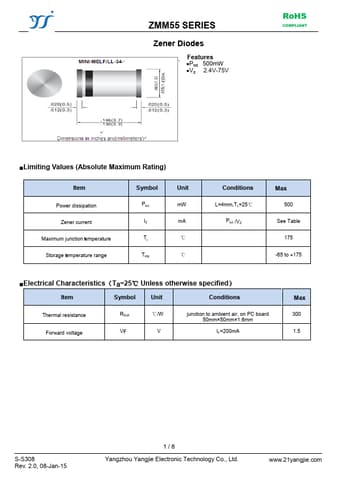

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ZMM55B3V9, ZMM55C2V0
Manufacturer
Yangzhou Yangjie
File Size
559.96 KB
Datasheet
ZMM55C2V0-YangzhouYangjie.pdf
Description
Zener Diodes
Note
This datasheet PDF includes multiple part numbers: ZMM55B3V9, ZMM55C2V0.
Please refer to the document for exact specifications by model.
