HC0650B03 Hybrid Coupler

HC0650B03 Description

HC0650B03 Hybrid Coupler 3 dB, 90o Rev A1 .
The HC0650B03 is a low profile, high performance 3dB hybrid coupler in a new easy to use, manufacturing friendly surface mount package.

HC0650B03 Features

* 470
* 860 MHz
* CMMB
* High Power
* Very Low Loss
* Tight Amplitude Balance
* High Isolation
* Low VSWR
* Good Repeatability
* CTE compatible with FR4, G-10, RF-35, RO4350B and polyimide
* Immersion gold, prevent surface oxidation & scratch
* RoH

HC0650B03 Applications

* The HC0650B03 is designed particularly for balanced power and low noise amplifiers, plus signal distribution and other applications where low insertion loss and tight amplitude and phase balance is required. It can be used in high power applications up to 300 Watts. Parts have been subjected to rig

📥 Download Datasheet

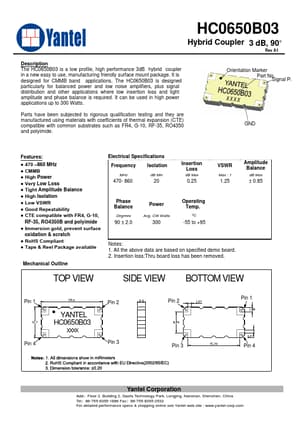

Preview of HC0650B03 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HC0650B03
Manufacturer
Yantel
File Size
1.47 MB
Datasheet
HC0650B03-Yantel.pdf
Description
Hybrid Coupler
