MVP33CA, MVP24CA - Transient Voltage Suppression Diodes

Name: MVP33CA
SKU: MVP33CA-1583699

📥 Download Datasheet

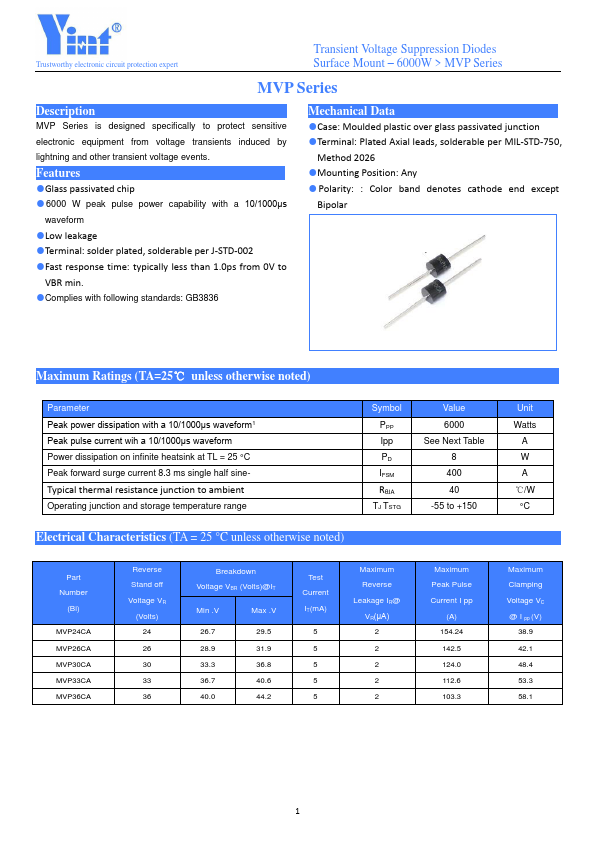

MVP33CA Datasheet Preview — This datasheet PDF includes multiple part numbers: MVP33CA, MVP24CA. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	MVP33CA, MVP24CA
Manufacturer	Yint
File Size	360.85 KB
Description	Transient Voltage Suppression Diodes
Datasheet	MVP24CA-Yint.pdf
Note	This datasheet PDF includes multiple part numbers: MVP33CA, MVP24CA. Please refer to the document for exact specifications by model.

MVP33CA Product details

Description

MVP Series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events.

Features

Glass passivated chip.
6000 W peak pulse power capability with a 10/1000μs waveform.
Low leakage.
Terminal: solder plated, solderable per J-STD-002.
Fast response time: typically less than 1.0ps from 0V to VBR min.
Complies with following standards: GB3836 Mechanical Data.
Case: Moulded plastic over glass passivated junction.
Terminal: Plated Axial leads, solderable per MIL-STD-750, Method 2026.
Mounting Position: Any.
Polarity: : Color band denotes c.
