VK3606DM Datasheet PDF - Yongjia 6 KEYS Capacitive Touch Key Specs

VK3606DM - 6 KEYS Capacitive Touch Key

Datasheet Summary

Description

of the Product 6 touch control keys are available with one-to-one direct output and excellent performance in waterproof and anti-interference

Features

s of the Product  Operating Voltage: 3.1V - 5.5V  Operating current: 3mA@5V  6 touch control Keys  Provides one-to-one direct output, with output at high voltage level when there is no key pressed and output at low voltage level when a key is pressed  Sensitivity is adjustable through adjustment of the external capacitor connected to CAP pin. Sensitivity is higher with larger capacitance  Waterproof and immersion proof. Key function is still effective even with water droplets covering the.

Datasheet Details

Part number	VK3606DM
Manufacturer	Yongjia
File Size	608.57 KB
Description	6 KEYS Capacitive Touch Key
Datasheet	VK3606DM Datasheet

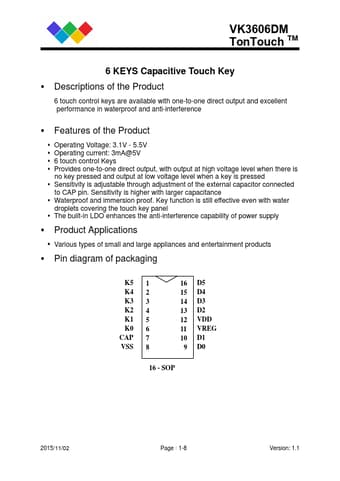

Additional preview pages of the VK3606DM datasheet.

📁 Similar Datasheet

VK3601SS-1 - Single Touch/DC LED dimming (VinKa)

VK3604 - touch pad detector (VinKa)

VK36E4 - touch pad detector (VinKa)

VK301 - SPI / IIC / UART 1.8V 16 QFN package 1 channel UART (Fosvos)

VK301A - SPI / IIC / UART 1.8V 16 QFN package 1 channel UART (Fosvos)

VK301B - SPI / IIC / UART 1.8V 16 QFN package 1 channel UART (Fosvos)

VK3232 - UART / SPI Interface 2.5V-5.5V wide voltage 2 channels of UART FIFO 16 extension Universal Asynchronous Receiver Transmitter (Fosvos)

VK3234 - UART / SPI Interface 2.5V-5.5V wide voltage 4-channel 16-stage FIFO UART extended Universal Asynchronous Receiver Transmitter (Fosvos)

VK3266 - More four-channel universal asynchronous bus interface transceiver leadless package (Fosvos)

VK3344 - IIC Bus Interface 2.5V-5.5V wide voltage SOP20 4-channel 16-stage FIFO UART extended Universal Asynchronous Receiver Transmitter (Fosvos)

Full PDF Text Transcription

Click to expand full text

VK3606DM TonTouch TM 6 KEYS Capacitive Touch Key  Descriptions of the Product 6 touch control keys are available with one-to-one direct output and excellent performance in waterproof and anti-interference  Features of the Product  Operating Voltage: 3.1V - 5.5V  Operating current: 3mA@5V  6 touch control Keys  Provides one-to-one direct output, with output at high voltage level when there is no key pressed and output at low voltage level when a key is pressed  Sensitivity is adjustable through adjustment of the external capacitor connected to CAP pin. Sensitivity is higher with larger capacitance  Waterproof and immersion proof.

Published: Apr 6, 2018 |
