UTC34119 LOW POWER AUDIO AMPLIFIER

UTC34119 Description

www.DataSheet4U.com UTC34119 .
LI NEAR I NTEGRATED CI RCUI T LOW POWER AUDIO AMPLIFIER The UTC34119 is a low power audio amplifier integrated circuit intended (primarily) for the.

UTC34119 Features

* Wide operating supply voltage: Vcc=2~16V
* Low quiescent supply current(Icc=2.7mA,typical)
* Medium output power Po=250mW at Vcc=6V,RL=32ohm ,Thd=10%
* Load Impedance range(8 ohms to 100 ohm)
* Low distortion
* Mute function(Icc=65µA, typical)
* Minimum number of external part

UTC34119 Applications

* such as in speakerphones. It provides differential speaker outputs to maximize output swing at low supply voltages. Coupling Capacitor to the speaker are not required. Open loop gain is 80dB, and the closed loop gain is set with two external resistors. A chips Disable pin permits powering down and/

📥 Download Datasheet

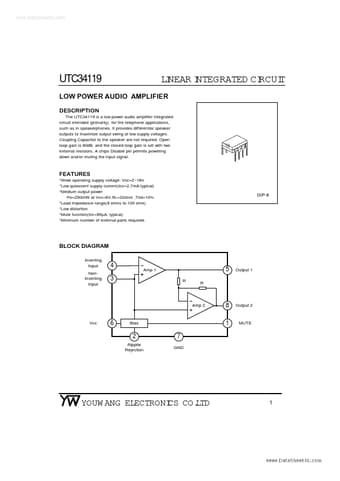

Preview of UTC34119 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
UTC34119
Manufacturer
Youw Ang
File Size
126.45 KB
Datasheet
UTC34119_YouwAng.pdf
Description
LOW POWER AUDIO AMPLIFIER
