30FB-26, 30FB-22 Datasheet - Yuan Dean Scientific

30FB-26, 30FB-22, 10/100/1000 BASE-T MAGANETIC

www.DataSheet4U.net Yuan Dean Scientific CO.,LTD 10/100/1000 BASE-T MAGANETIC MODULE .

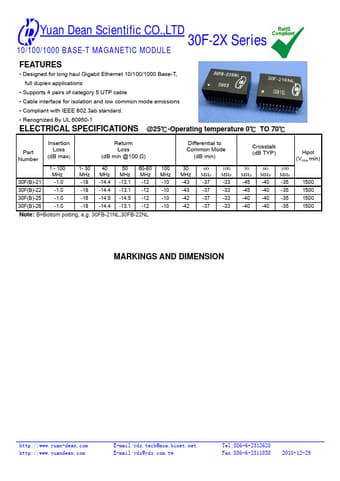

datasheet Preview Page 1 from Datasheet4u.com

30FB-22_YuanDeanScientific.pdf

30FB-26 Datasheet Preview — This datasheet PDF includes multiple part numbers: 30FB-26, 30FB-22. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

30FB-26, 30FB-22

Manufacturer:

Yuan Dean Scientific

File Size:

225.77 KB

Description:

10/100/1000 BASE-T MAGANETIC

Note:

This datasheet PDF includes multiple part numbers: 30FB-26, 30FB-22.
Please refer to the document for exact specifications by model.

Applications

* Supports 4 pairs of category 5 UTP cable
* Cable interface for isolation and low common mode emissions
* Compliant with IEEE 802.3ab standard.
* Recognized By UL 60950-1 30F-2X Series ELECTRICAL SPECIFICATIONS Part Number Insertion Loss (dB max) 1 - 100 MHz -1.0 -
