CLV0700E, CLV0700E_Z, OSCILLATOR

www.DataSheet4U.com 9939 Via Pasar * San Diego, CA 92126 TEL (858) 621-2700 FAX (858) 621-2722 CLV0700E VOLTAGE CONTROLLED OSCILLATOR Rev B2 .

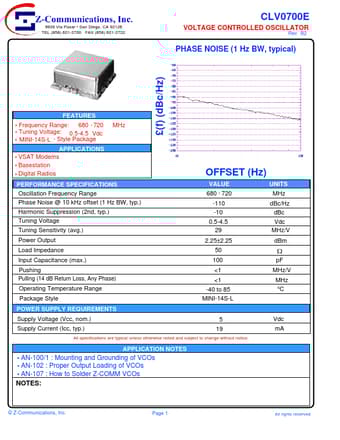

datasheet Preview Page 1 from Datasheet4u.com

CLV0700E_Z-Communications.pdf

CLV0700E Datasheet Preview — This datasheet PDF includes multiple part numbers: CLV0700E, CLV0700E_Z. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

CLV0700E, CLV0700E_Z

Manufacturer:

Z-Communications

File Size:

70.95 KB

Description:

OSCILLATOR

Note:

This datasheet PDF includes multiple part numbers: CLV0700E, CLV0700E_Z.
Please refer to the document for exact specifications by model.

Features

* 680 - 720
* Frequency Range:
* Tuning Voltage: 0.5-4.5 Vdc

Applications

* VSAT Modems
* Basestation
* Digital Radios PERFORMANCE SPECIFICATIONS Oscillation Frequency Range Phase Noise @ 10 kHz offset (1 Hz BW, typ. ) Harmonic Suppression (2nd, typ. ) Tuning Voltage Tuning Sensitivity (avg. ) Power Output Load Impedance Input Capacitance (max. ) Pushi
