PCA0163A - LOW COST - HIGH PERFORMANCE PHASE LOCKED LOOP

This page provides the datasheet information for the PCA0163A, a member of the PCA0163A_Z LOW COST - HIGH PERFORMANCE PHASE LOCKED LOOP family.

Datasheet Summary

Description

NOTES: Reference Oscillator Signal: 5 MHz< f osc

Features

  • Frequency Range: 163.84 - 163.84 MHz.
  • Step Size: 80 KHz.
  • cPLL - Style Package.

📥 Download Datasheet

Datasheet preview – PCA0163A

Datasheet Details

Part number PCA0163A
Manufacturer Z-Communications
File Size 82.96 KB
Description LOW COST - HIGH PERFORMANCE PHASE LOCKED LOOP
Datasheet download datasheet PCA0163A Datasheet
Additional preview pages of the PCA0163A datasheet.

📁 Similar Datasheet

Other Datasheets by Z-Communications
  • PCA0102A - LOW COST - HIGH PERFORMANCE PHASE LOCKED LOOP
  • PCA0174A-LF - Telecommunications - Satellite
  • PCA0198A - LOW COST - HIGH PERFORMANCE PHASE LOCKED LOOP
  • PCA0300A - LOW COST - HIGH PERFORMANCE PHASE LOCKED LOOP
  • PCA0445A - LOW COST - HIGH PERFORMANCE PHASE LOCKED LOOP
  • PCA0495A - LOW COST - HIGH PERFORMANCE PHASE LOCKED LOOP
  • PCA1127A - PHASE LOCKED LOOP
  • PCA1292A - PHASE LOCKED LOOP

Full PDF Text Transcription

Click to expand full text

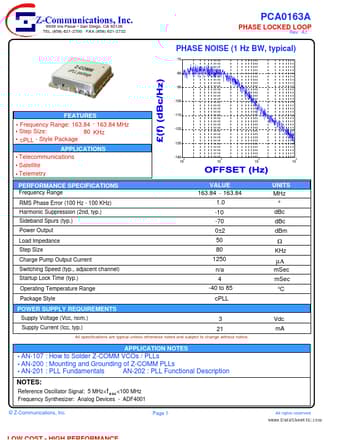

www.DataSheet4U.com 9939 Via Pasar • San Diego, CA 92126 TEL (858) 621-2700 FAX (858) 621-2722 PCA0163A PHASE LOCKED LOOP Rev A1 PHASE NOISE (1 Hz BW, typical) -70 -80 -90 -100 FEATURES • Frequency Range: 163.84 - 163.84 MHz • Step Size: 80 KHz • cPLL - Style Package APPLICATIONS • Telecommunications • Satellite • Telemetry PERFORMANCE SPECIFICATIONS Frequency Range RMS Phase Error (100 Hz - 100 KHz) Harmonic Suppression (2nd, typ.) Sideband Spurs (typ.) Power Output Load Impedance Step Size Charge Pump Output Current Switching Speed (typ., adjacent channel) Startup Lock Time (typ.) Operating Temperature Range Package Style -110 -120 -130 -140 2 10 10 3 10 4 10 5 VALUE 163.84 - 163.84 1.
