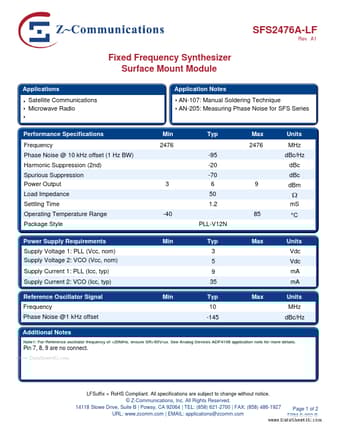

SFS2476A-LF Datasheet | Z-Communications

Rev A1 Fixed Frequency Synthesizer Surface Mount Module Applications - Satellite munications - Microwave Radio - Performance Specifications Frequency Phase Noise @ 10 k Hz offset (1 Hz BW) Harmonic Suppression (2nd) Spurious Suppression Power Output Load Impedance Settling Time Operating Temperature Range Package Style Power Supply Requirements Supply Voltage 1: PLL (Vcc, nom) Supply Voltage 2: VCO (Vcc, nom) Supply Current 1: PLL (Icc, typ) Supply Current 2: VCO (Icc, typ) Reference Oscillator Signal Frequency Phase Noise @1 k Hz offset Additional Notes Note1: For Reference oscillator frequency of <20MHz, ensure SR>50V/us. See Analog Devices ADF4106 application note for more details. Application Notes - AN-107: Manual Soldering Technique - AN-205: Measuring Phase Noise for SFS Series Min 2476 Typ Max 2476 Units MHz d Bc/Hz d Bc d Bc -95 -20 -70 3 6 50 1.2 -40 PLL-V12N Min Typ 3 5 9 35 Min Typ 10 -145 Max Max 85 9 d Bm m S °C Units Vdc Vdc m A m A Units MHz d Bc/Hz Pin 7,...
