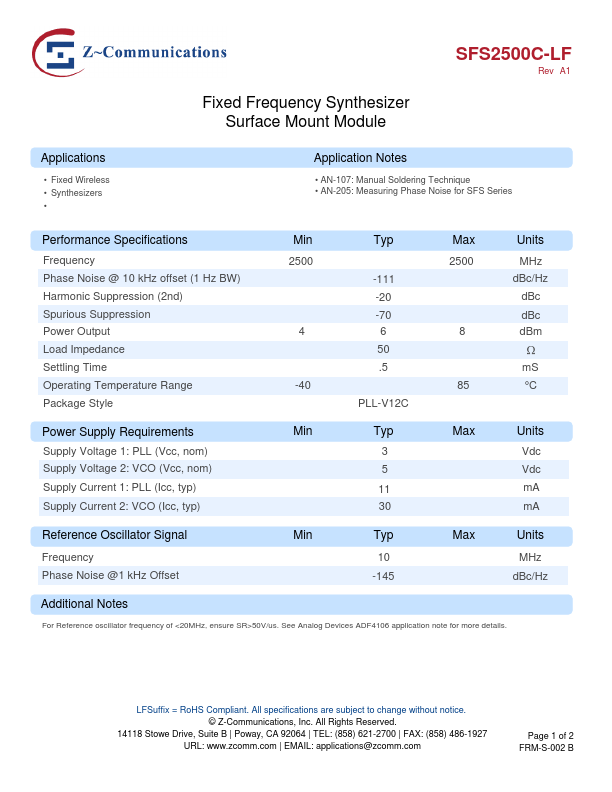

SFS2500C-LF
Fixed Frequency Synthesizer Surface Mount Module
Rev A1
Applications
- Fixed Wireless
- Synthesizers
- Application Notes
- AN-107: Manual Soldering Technique
- AN-205: Measuring Phase Noise for SFS Series

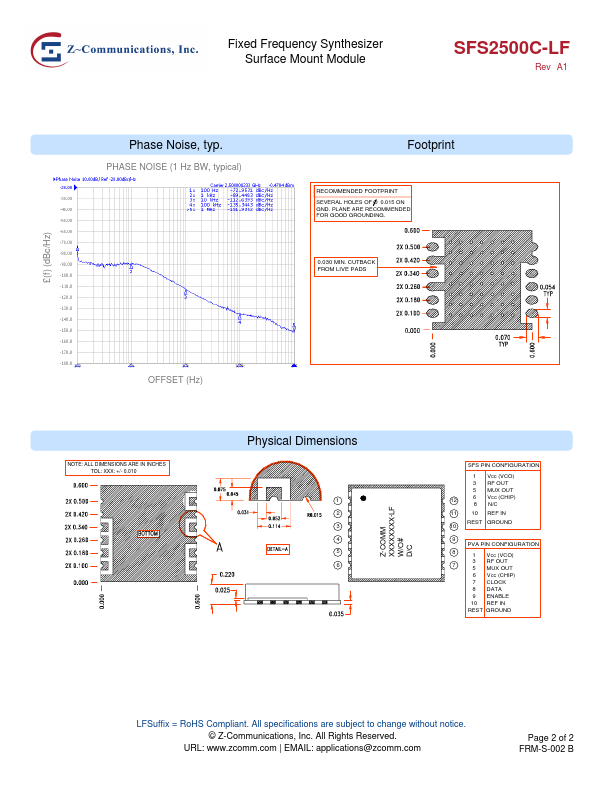

Performance Specifications
Frequency Phase Noise @ 10 k Hz offset (1 Hz BW) Harmonic Suppression (2nd) Spurious Suppression Power Output Load Impedance Settling Time Operating Temperature Range Package Style
Min
4 -40
Typ
-111 -20 -70 6 50 .5
PLL-V12C
Max
8 85
Units
MHz d Bc/Hz d Bc d Bc d Bm m S °C
Power Supply Requirements
Supply Voltage 1: PLL (Vcc, nom) Supply Voltage 2: VCO (Vcc, nom) Supply Current 1: PLL (Icc, typ) Supply Current 2: VCO (Icc, typ)
Min
Typ
Max
Units
Vdc
Vdc
11 m A
30 m A
Reference Oscillator Signal
Frequency Phase Noise @1 k Hz...
