SFS7100A-LF - Fixed Frequency Synthesizer

📥 Download Datasheet

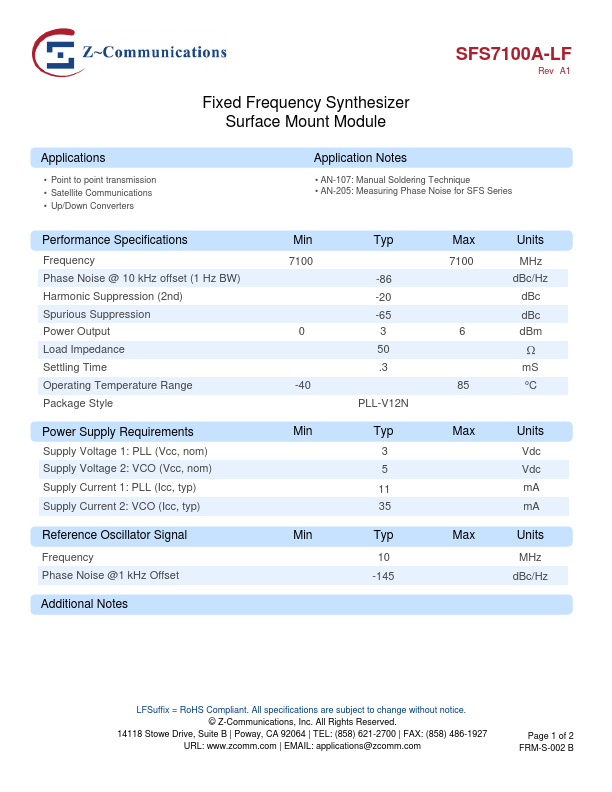

Datasheet preview – SFS7100A-LF

Datasheet Details

Part number SFS7100A-LF
Manufacturer Z-Communications
File Size 91.93 KB
Description Fixed Frequency Synthesizer
Datasheet download datasheet SFS7100A-LF Datasheet

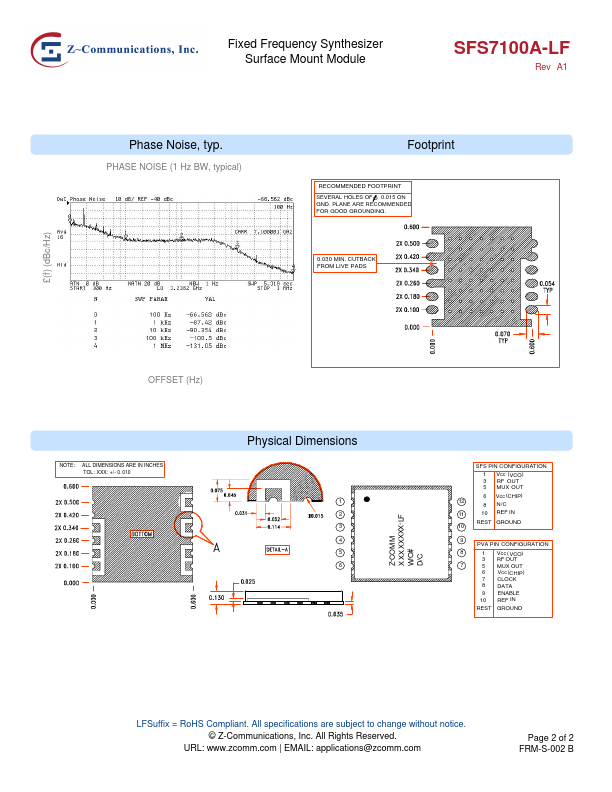

Additional preview pages of the SFS7100A-LF datasheet.

📁 Similar Datasheet

  • SFS7.0A - 200W Peak Power TVS (SeCoS)
  • SFS7.5A - 200W Peak Power TVS (SeCoS)
  • SFS0307T4 - N AND P-CHANNEL POWER MOSFET (HiSemicon)
  • SFS0405T4 - N and P-CHANNEL POWER MOSFET (HiSemicon)
  • SFS0407T4 - N AND P-CHANNEL POWER MOSFET (HiSemicon)
  • SFS10 - DC-DC Converters PCB Mount type (COSEL)
  • SFS1001G - Surface Mount Super Fast Rectifiers (Taiwan Semiconductor)
  • SFS1002G - Surface Mount Super Fast Rectifiers (Taiwan Semiconductor)
  • SFS1003G - Surface Mount Super Fast Rectifiers (Taiwan Semiconductor)
  • SFS1004G - Surface Mount Super Fast Rectifiers (Taiwan Semiconductor)
Other Datasheets by Z-Communications

Full PDF Text Transcription

Click to expand full text
Fixed Frequency Synthesizer Surface Mount Module SFS7100A-LF Rev A1 Applications • Point to point transmission • Satellite Communications • Up/Down Converters Application Notes • AN-107: Manual Soldering Technique • AN-205: Measuring Phase Noise for SFS Series Performance Specifications Frequency Phase Noise @ 10 kHz offset (1 Hz BW) Harmonic Suppression (2nd) Spurious Suppression Power Output Load Impedance Settling Time Operating Temperature Range Package Style Power Supply Requirements Supply Voltage 1: PLL (Vcc, nom) Supply Voltage 2: VCO (Vcc, nom) Supply Current 1: PLL (Icc, typ) Supply Current 2: VCO (Icc, typ) Reference Oscillator Signal Frequency Phase Noise @1 kHz Offset Additional Notes Min 7100 0 -40 Min 3.0 4.80 Min Typ -86 -20 -65 3 50 .
