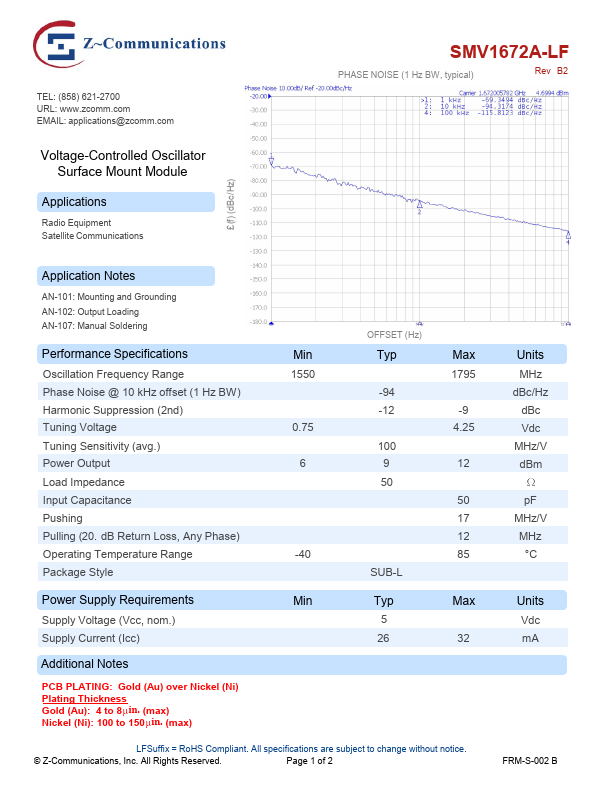

SMV1672A-LF
TEL: (858) 621-2700 URL: .zm. EMAIL: applications@zm.
Voltage-Controlled Oscillator Surface Mount Module
Applications
Radio Equipment Satellite munications
£(f) (d Bc/Hz)
PHASE NOISE (1 Hz BW, typical)
Rev B2
Application Notes
AN-101: Mounting and Grounding AN-102: Output Loading AN-107: Manual Soldering
Performance Specifications Oscillation Frequency Range Phase Noise @ 10 k Hz offset (1 Hz BW) Harmonic Suppression (2nd) Tuning Voltage Tuning Sensitivity (avg.) Power Output Load Impedance Input Capacitance Pushing Pulling (20. d B Return Loss, Any Phase) Operating Temperature Range Package Style
Min 1550 0.75
-40
OFFSET (Hz)
Typ -94 -12 100 9 50
SUB-L
Max 1795
-9 4.25
50 17 12 85
Power Supply Requirements Supply Voltage (Vcc, nom.) Supply Current (Icc)
Min
Typ
Max
Additional Notes
PCB PLATING: Gold (Au) over Nickel (Ni) Plating Thickness Gold (Au): 4 to 8 in. (max) Nickel (Ni): 100 to 150 in. (max)
LFSuffix = Ro HS pliant. All specifications are...
