V440MC01, V440MC01_Z OSCILLATOR

V440MC01 Description

www.DataSheet4U.com V440MC01 9939 Via Pasar * San Diego, CA 92126 TEL (619) 621-2700 FAX (619) 621-2722 VOLTAGE CONTROLLED OSCILLATOR Rev C.

V440MC01 Features

* Frequency Range: 370 - 515 MHz
* Tuning Voltage: 0-8 Vdc

V440MC01 Applications

* VHF Radios
* Test Instrumentation
* Mobile Radios PERFORMANCE SPECIFICATIONS Oscillation Frequency Range Phase Noise @ 10 kHz offset (1 Hz BW, typ. ) Harmonic Suppression (2nd, typ. ) Tuning Voltage Tuning Sensitivity (avg. ) Power Output Load Impedance Input Capacitance (max.

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: V440MC01, V440MC01_Z. Please refer to the document for exact specifications by model.

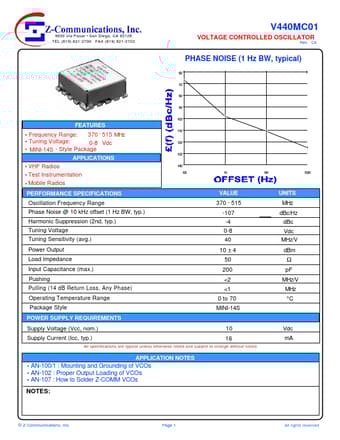

datasheet Preview Page 2

Datasheet Details

Part number
V440MC01, V440MC01_Z
Manufacturer
Z-Communications
File Size
188.17 KB
Datasheet
V440MC01_Z-Communications.pdf
Description
OSCILLATOR
Note
This datasheet PDF includes multiple part numbers: V440MC01, V440MC01_Z.
Please refer to the document for exact specifications by model.
