V590ME09-LF - Voltage-Controlled Oscillator

Z-Communications

Download the V590ME09-LF datasheet PDF. This datasheet also covers the V590ME09-LF-Z variant, as both devices belong to the same voltage-controlled oscillator family and are provided as variant models within a single manufacturer datasheet.

📥 Download Datasheet

V590ME09-LF voltage-controlled oscillator by Z-Communications - Datasheet Preview — Note: The manufacturer provides a single datasheet file (V590ME09-LF-Z-Communications.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number	V590ME09-LF
Manufacturer	Z-Communications
File Size	100.48 KB
Description	Voltage-Controlled Oscillator
Datasheet	V590ME09-LF Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer

Other Datasheets by Z-Communications

Part Number	Description
V590ME01	OSCILLATOR
V590ME01-LF	OSCILLATOR
V590ME08	OSCILLATOR
V590ME08-LF	OSCILLATOR

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

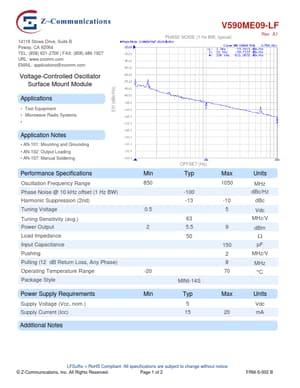

14118 Stowe Drive, Suite B Poway, CA 92064 TEL: (858) 621-2700 | FAX: (858) 486-1927 URL: www.zcomm.com EMAIL: applications@zcomm.com Voltage-Controlled Oscillator Surface Mount Module Applications • Test Equipment • Microwave Radio Systems • Application Notes • AN-101: Mounting and Grounding • AN-102: Output Loading • AN-107: Manual Soldering Performance Specifications Oscillation Frequency Range Phase Noise @ 10 kHz offset (1 Hz BW) Harmonic Suppression (2nd) Tuning Voltage Tuning Sensitivity (avg.) Power Output Load Impedance Input Capacitance Pushing Pulling (12 dB Return Loss, Any Phase) Operating Temperature Range Package Style Power Supply Requirements Supply Voltage (Vcc, nom.
