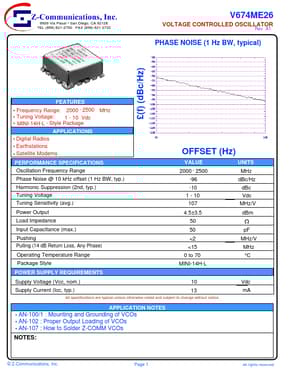

V674ME26
FEATURES
- Frequency Range: 2000
- 2500 MHz
- Tuning Voltage: 1
- 10 Vdc
- MINI-14H-L
- Style Package APPLICATIONS
- Digital Radios
- Earthstations
- Satellite Modems PERFORMANCE SPECIFICATIONS Oscillation Frequency Range Phase Noise @ 10 k Hz offset (1 Hz BW, typ.) Harmonic Suppression (2nd, typ.) Tuning Voltage Tuning Sensitivity (avg.) Power Output Load Impedance Input Capacitance (max.) Pushing
Pulling (14 d B Return Loss, Any Phase)
£(f) (d Bc/Hz)
OFFSET (Hz)
VALUE 2000
- 2500 -96 -10 1
- 10 107 4.5±3.5 50 50 <2 <15 0 to 70 MINI-14H-L 10 13 Vdc m A UNITS MHz d Bc/Hz d Bc Vdc MHz/V d Bm
Ω p F MHz/V MHz °C
Operating Temperature Range Package Style POWER SUPPLY REQUIREMENTS Supply Voltage (Vcc, nom.) Supply Current (Icc, typ.) APPLICATION NOTES
- AN-100/1 : Mounting and Grounding of VCOs
- AN-102 : Proper Output Loading of VCOs
- AN-107 : How to Solder Z-M VCOs
All specifications are typical unless otherwise noted and subject to change without notice.
NOTES:
© Z-munications,...
