V940ME04 - OSCILLATOR

Download the V940ME04 datasheet PDF. This datasheet also covers the V940ME04_Z variant, as both devices belong to the same oscillator family and are provided as variant models within a single manufacturer datasheet.

Key Features

  • Frequency Range: 5220 - 5420.
  • Tuning Voltage: 0.5-4.5 Vdc.
  • MINI-14S-L - Style Package.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (V940ME04_Z-Communications.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number V940ME04
Manufacturer Z-Communications
File Size 194.57 KB
Description OSCILLATOR
Datasheet download datasheet V940ME04 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
V947 Silicon Abrupt Tuning Varactors MA-COM
V947E Silicon Abrupt Tuning Varactors MA-COM

Other Datasheets by Z-Communications

Part Number Description
V940ME02 OSCILLATOR
V940ME03-LF Voltage-Controlled Oscillator
V940ME05 Voltage-Controlled Oscillator
V940ME11 OSCILLATOR
V940ME11-LF OSCILLATOR

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

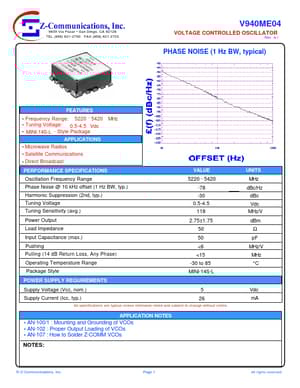

www.DataSheet4U.com V940ME04 9939 Via Pasar • San Diego, CA 92126 TEL (858) 621-2700 FAX (858) 621-2722 VOLTAGE CONTROLLED OSCILLATOR Rev A1 PHASE NOISE (1 Hz BW, typical) FEATURES • Frequency Range: 5220 - 5420 • Tuning Voltage: 0.5-4.5 Vdc • MINI-14S-L - Style Package APPLICATIONS • Microwave Radios • Satellite Communications • Direct Broadcast PERFORMANCE SPECIFICATIONS Oscillation Frequency Range MHz VALUE 5220 - 5420 -78 -30 0.5-4.5 118 2.75±1.75 50 50 <6 <15 -30 to 85 MINI-14S-L UNITS MHz dBc/Hz dBc Vdc MHz/V dBm Phase Noise @ 10 kHz offset (1 Hz BW, typ.) Harmonic Suppression (2nd, typ.) Tuning Voltage Tuning Sensitivity (avg.) Power Output Load Impedance Input Capacitance (max.
