V940ME11-LF Datasheet | Z-Communications

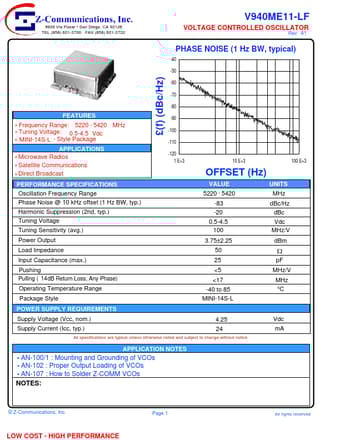

FEATURES - Frequency Range: 5220 - 5420 MHz - Tuning Voltage: 0.5-4.5 Vdc - MINI-14S-L - Style Package APPLICATIONS - Microwave Radios - Satellite munications - Direct Broadcast PERFORMANCE SPECIFICATIONS Oscillation Frequency Range Phase Noise @ 10 k Hz offset (1 Hz BW, typ.) Harmonic Suppression (2nd, typ.) Tuning Voltage Tuning Sensitivity (avg.) Power Output Load Impedance Input Capacitance (max.) Pushing Pulling ( 14 d B Return Loss, Any Phase) 10 E+3 100 E+3 OFFSET (Hz) VALUE 5220 - 5420 -83 -20 0.5-4.5 100 3.75±2.25 50 25 <5 <17 -40 to 85 MINI-14S-L 4.25 24 APPLICATION NOTES Vdc m A p F MHz/V MHz °C UNITS MHz d Bc/Hz d Bc Vdc MHz/V d Bm Operating Temperature Range Package Style POWER SUPPLY REQUIREMENTS Supply Voltage (Vcc, nom.) Supply Current (Icc, typ.) All specifications are typical unless otherwise noted and subject to change without notice. - AN-100/1 : Mounting and Grounding of VCOs - AN-102 : Proper Output Loading of VCOs - AN-107 : How to Solder Z-M VCOs NOTES: ©...
