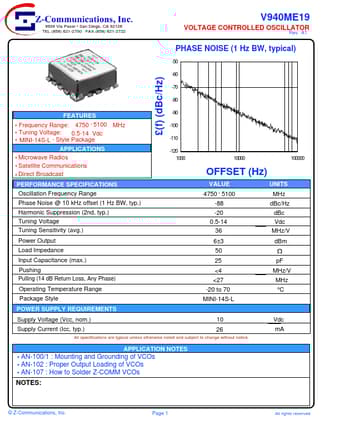

V940ME19
FEATURES
- Frequency Range: 4750
- 5100 MHz
- Tuning Voltage: 0.5-14 Vdc
- MINI-14S-L
- Style Package APPLICATIONS
- Microwave Radios
- Satellite munications
- Direct Broadcast PERFORMANCE SPECIFICATIONS Oscillation Frequency Range Phase Noise @ 10 k Hz offset (1 Hz BW, typ.) Harmonic Suppression (2nd, typ.) Tuning Voltage Tuning Sensitivity (avg.) Power Output Load Impedance Input Capacitance (max.) Pushing
Pulling (14 d B Return Loss, Any Phase)
OFFSET (Hz)
VALUE 4750
- 5100 -88 -20 0.5-14 36 6±3 50 25 <4 <27 -20 to 70 MINI-14S-L 10 26 Vdc m A UNITS MHz d Bc/Hz d Bc Vdc MHz/V d Bm
Ω p F MHz/V MHz °C
Operating Temperature Range Package Style POWER SUPPLY REQUIREMENTS Supply Voltage (Vcc, nom.) Supply Current (Icc, typ.) APPLICATION NOTES
- AN-100/1 : Mounting and Grounding of VCOs
- AN-102 : Proper Output Loading of VCOs
- AN-107 : How to Solder Z-M VCOs
All specifications are typical unless otherwise noted and subject to change without notice.
NOTES:
