57BYGH51M-144-4A Datasheet - ZBM

57BYGH51M-144-4A PLANET GEAR STEPPER MOTOR

ZBM www.sh-jingkong.com 52PAxxxGF/57BYGH PLANET GEAR STEPPER MOTOR Housing Material:Metal Backlash at No-Load:≤1. 5º Bearing at Output：Ball or Sleeve Permissible Overhung Load:≤20kg Permissible Thrust Load:≤10kg Max.Radial Play:≤0.05mm Max.Thrust Play:≤0.3mm 2010-2011 Gear Box Data Number of Stage Exact Reduction Ratio Efficiency Max Permissible Torque # 1:X % Nm 1 2 3 4 90% 6 12 49.5 8 16 25 32 81% 12 24 64.5 50 64 100 128 200 256 73% 24 44 79.5 312.5 400 512 Moment Permis.

57BYGH51M-144-4A Datasheet (464.52 KB)

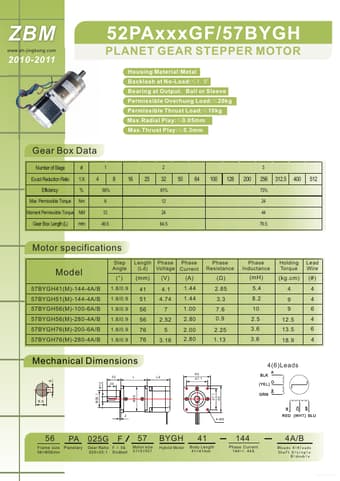

Preview of 57BYGH51M-144-4A PDF

Datasheet Details

Part number:

57BYGH51M-144-4A

Manufacturer:

ZBM

File Size:

464.52 KB

Description:

Planet gear stepper motor.
