SMDJ33CA, SMDJ5.0A, TRANSIENT VOLTAGE SUPPRESSOR

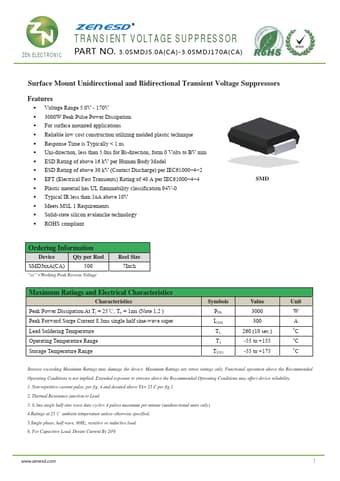

ZEN ELECTRONIC TRANSIENT VOLTAGE SUPPRESSOR PA RT N O. 3 .0 S M D J 5 .0 A ( C A ) - 3 .0 S M D J 1 7 0 A ( C A ) Surface Mount Unidirectiona.

SMDJ5.0A-ZENELECTRONIC.pdf

SMDJ33CA Datasheet Preview — This datasheet PDF includes multiple part numbers: SMDJ33CA, SMDJ5.0A. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SMDJ33CA, SMDJ5.0A

Manufacturer:

ZEN ELECTRONIC

File Size:

236.40 KB

Description:

TRANSIENT VOLTAGE SUPPRESSOR

Note:

This datasheet PDF includes multiple part numbers: SMDJ33CA, SMDJ5.0A.
Please refer to the document for exact specifications by model.

Features

* Voltage Range 5.0V - 170V
* 3000W Peak Pulse Power Dissipation

Applications

* Reliable low cost construction utilizing molded plastic technique
* Response Time is Typically < 1 ns
* Uni-direction, less than 5.0ns for Bi-direction, form 0 Volts to BV min
* ESD Rating of above 16 kV per Human Body Model
* ESD Rating of above 30 kV (Contact Discharge) per I
