ZMY20M MAGNETIC FIELD SENSOR

ZMY20M Description

www.DataSheet4U.com ZMY20M MAGNETIC FIELD SENSOR WITH INTERNAL MAGNET .
The ZMY20M is an extremely sensitive magnetic sensor employing the magneto-resistive effect of thin film permalloy.

ZMY20M Features

* Package: SOT223
* Supply voltage 12V
* Internal magnet for creation of auxiliary field Hx

ZMY20M Applications

* Linear position measurement
* Angular position measurement
* Navigation (electronic compass)
* Revolution measurement ORDERING INFORMATION DEVICE REEL SIZE 7” 13” TAPE WIDTH 12mm 12mm QUANTITY PER REEL 1,000 4,000 ZMY20MTA ZMY20MTC DEVICE MARKING
* ZMY20M

📥 Download Datasheet

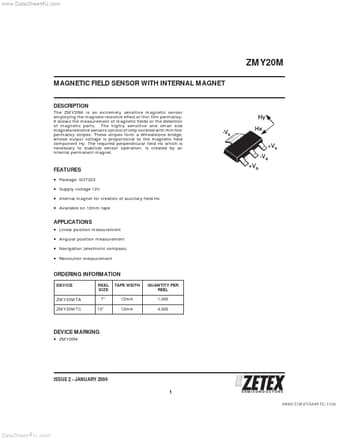

Preview of ZMY20M PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ZMY20M
Manufacturer
ZETEX
File Size
204.54 KB
Datasheet
ZMY20M_ZETEX.pdf
Description
MAGNETIC FIELD SENSOR
