ACM1202K-FL-YBH-01

The ACM1202K-FL-YBH-01 is LCD designed by ZETTLER Electronics.

Product Overview

📥 Download Datasheet

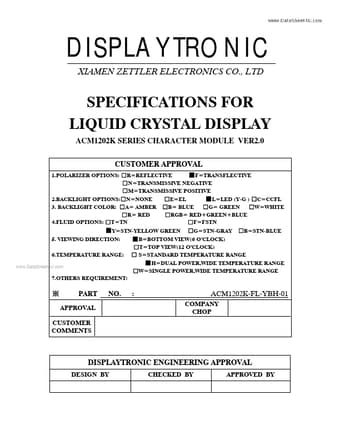

Datasheet preview – ACM1202K-FL-YBH-01

Datasheet Details

Part number ACM1202K-FL-YBH-01
Manufacturer ZETTLER Electronics
File Size 975.03 KB
Description LCD
Datasheet download datasheet ACM1202K-FL-YBH-01_ZETTLERElectronics.pdf
Additional preview pages of the ACM1202K-FL-YBH-01 datasheet.

Product details

Description

Executing time fosc=250khz 1.64ms Clear Display 0 0 0 0 0 0 0 0 0 1 Clears Display & Returns to Address 0. Returns Cursor to Address 0. Also returns the display being shifted to the original position.DDRAM contents remain unchanged.I/D: Set Cursor Moving Direction I/D=1: Increment I/D=0: Decrement S: Specify Shift of Display S=1: The display is shifted S=0: The display is not shifted Cursor at Home 0 0 0 0 0 0 0 0 1 x 1.64ms Entry Mode Set 0 0 0 0 0 0 0 1 I/D S
