ZXXS460-L02 - TFT LCD

ZHIXUAN

The ZXXS460-L02 by ZHIXUAN is a TFT LCD. Below is the official datasheet preview.

📥 Download Datasheet

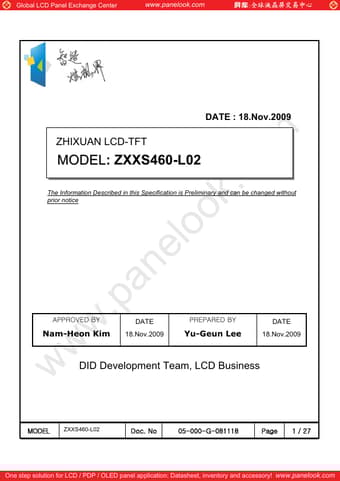

ZXXS460-L02 TFT LCD by ZHIXUAN - Datasheet Preview — Official preview page of the **ZXXS460-L02** TFT LCD datasheet (ZHIXUAN).

Datasheet Details

Part number	ZXXS460-L02
Manufacturer	ZHIXUAN
File Size	1.11 MB
Description	TFT LCD
Datasheet	ZXXS460-L02-ZHIXUAN.pdf
Additional preview pages of the ZXXS460-L02 datasheet.

ZXXS460-L02 Product details

Description

--------------------------------------------------------------------------------------- (4) General Information --------------------------------------------------------------------------------------- (4) 1. Absolute Maximum Ratings -------------------------------------------------------------------------- (5) 2. Application information for I.D.(Information Display) ------------------------------------------- (6) 3. Optical Characteristics --------------------------------------------------------

Features

RoHS compliance (Pb-free).
High contrast ratio, High luminance.
SPVA(Super Patterned Vertical Align) mode.
Wide viewing angle (.
178¶).
High speed response.
Super narrow bezel, Black top chassis.
Landscape / Portrait type compatible.
WXGA (1366 x 768 pixels) resolution (16:9).
Low power consumption.
Direct Type 2100 LEDs(light emitting diode).
DE(Data Enable) mode.
LVDS (Low Voltage Differential Signaling) interface (1pixel/clock) G.
