DB101G - GLASS PASSIVATED SINGLE-PHASE BRIDGE RECTIFIER

DB101G Description

DB101G THRU DB107G GLASS PASSIVATED SINGLE-PHASE BRIDGE RECTIFIER Reverse Voltage - 50 to 1000 Volts Forward Current - 1.0 Ampere DFM 0.255(6.5) .

DB101G Features

* This series is UL listed under the Recognized Component Index, file number E-96005
* Surge overload rating of 50 Amperes peak
* Ideal for printed circuit board
* Reliable low cost construction utilizing molded plastic technique
* High temperature soldering guaranteed: 260oC/10

📥 Download Datasheet

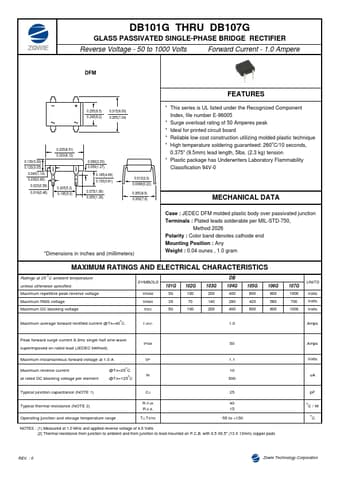

Preview of DB101G PDF
datasheet Preview Page 2

Datasheet Details

Part number
DB101G
Manufacturer
ZOWIE
File Size
48.86 KB
Datasheet
DB101G-ZOWIE.pdf
Description
GLASS PASSIVATED SINGLE-PHASE BRIDGE RECTIFIER
