DB107G - GLASS PASSIVATED SINGLE-PHASE BRIDGE RECTIFIER

Product Overview

ZOWIE

Part number	DB107G
Manufacturer	ZOWIE
File Size	48.86 KB
Description	GLASS PASSIVATED SINGLE-PHASE BRIDGE RECTIFIER
Datasheet	DB107G Datasheet
Note	This datasheet PDF includes multiple part numbers: DB107G, DB101G. Please refer to the document for exact specifications by model.

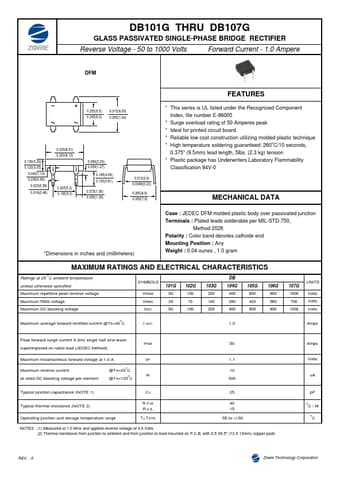

Additional preview pages of the DB107G datasheet.

This series is UL listed under the Recognized Component Index, file number E-96005.
Surge overload rating of 50 Amperes peak.
Ideal for printed circuit board.
Reliable low cost construction utilizing molded plastic technique.
High temperature soldering guaranteed: 260oC/10 seconds, 0.375" (9.5mm) lead length, 5lbs. (2.3 kg) tension.
Plastic package has Underwriters Laboratory Flammability Classification 94V-0.
