SB260, SB220 SCHOTTKY BARRIER RECTIFIER

SB260 Description

SB220 THRU SB2100 SCHOTTKY BARRIER RECTIFIER Reverse Voltage - 20 to 100 Volts Forward Current - 2.0 Amperes DO-204AL 0.107(2.70) 0.080(2.00) DIA.

SB260 Features

* Plastic package has Underwriters Laboratory Flammability Classifications 94V-0
* Metal silicon junction, majority carrier conduction
* Guardring for overvoltage protection
* Low power loss, high efficiency
* High current capability, low forward voltage drop
* High surge cap

SB260 Applications

* High temperature soldering guaranteed : 260oC / 10 seconds, 0.375" (9.5mm) lead length, 5 lbs. (2.3kg) tension MECHANICAL DATA
* Dimensions in inches and (millimeters) Case : JEDEC DO-204AL Molded plastic body Terminals : Tin Plated, solderable per MIL-STD-750, Method 2026 Polarity : Colo

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SB260, SB220. Please refer to the document for exact specifications by model.

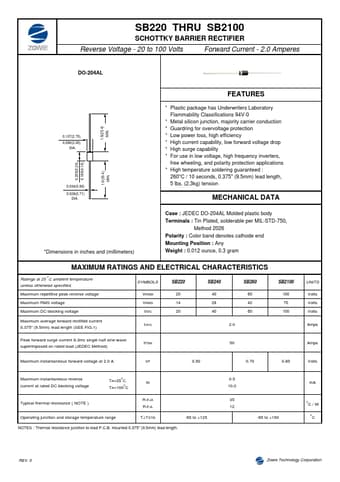

datasheet Preview Page 2
