* The plastic package carries Underwriters Laboratory Flammability Classification 94V-0
* Super fast switching speed
* Low leakage
* Low forward voltage drop
* High current capability
* High surge capability
* High reliability
* Good for switching mode circuit 0.375(
SF32
ZOWIE
47.05 KB
Super fast rectifier.

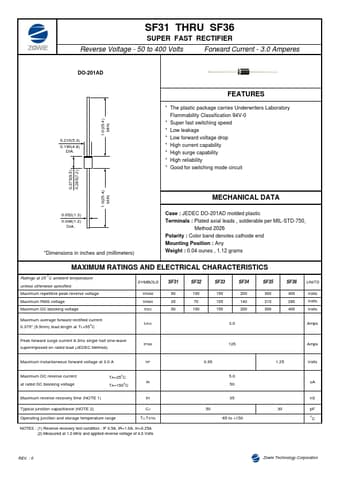

SF31 THRU SF36
SUPER FAST RECTIFIER
Reverse Voltage - 50 to 400 Volts
Forward Current - 3.0 Amperes
DO-201AD
0.210(5.3) 0.190(4.8)
DIA.
1.0(25.4).
