ZL60301

Parallel Fiber Optic Transceiver (4 + 4) x 2.7 Gbps

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
Distributor Zarlink Semiconductor Inc ZL60301MJD Quest Components 8 6 units
$48.98

ZL60301 Datasheet (489.21 KB)

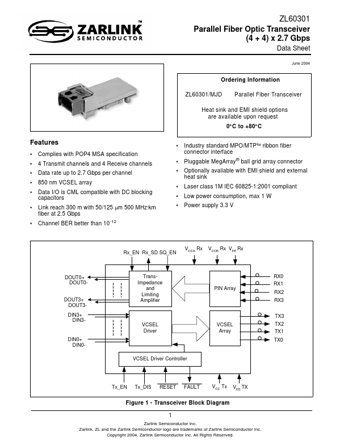

Preview of ZL60301 PDF

Datasheet Details

Part number:

ZL60301

Manufacturer:

Zarlink Semiconductor Inc

File Size:

489.21 KB

Description:

Parallel fiber optic transceiver (4 + 4) x 2.7 gbps.
ZL60301 Parallel Fiber Optic Transceiver (4 + 4) x 2.7 Gbps Data Sheet June 2004 Ordering Information ZL60301/MJD Parallel Fiber Transceiver Heat si.

ZL60301 Features

* Complies with POP4 MSA specification 4 Transmit channels and 4 Receive channels Data rate up to 2.7 Gbps per channel 850 nm VCSEL array Data I/O is CML compatible with DC blocking capacitors Link reach 300 m with 50/125 µm 500 MHz

ZL60301 General Description

The ZL60301 is a very high-speed transceiver for parallel fiber applications. This transceiver performs E/O and O/E conversions for data transmission over multimode fiber ribbon. The transmit section converts parallel electrical input signals via a laser driver and a VCSEL array into parallel optica.
