Le87251 Datasheet, Driver, Zarlink Semiconductor

Le87251 Features

  • Driver
  • Fixed Voltage Gain Of 13
  • 450 mA Peak Output Drive Capability
  • ±5 V to ±12 V Dual Supplies Or 10 V to 24 V Single Supply
  • 44 Vp-p Differential Outpu

PDF File Details

Part number:

Le87251

Manufacturer:

Zarlink Semiconductor

File Size:

164.61kb

Download:

📄 Datasheet

Description:

Worldwide adsl2+ dual channel line driver. The Le87251 is a dual channel differential amplifier designed to drive full rate ADSL2+ signals with very low power dissipation. The

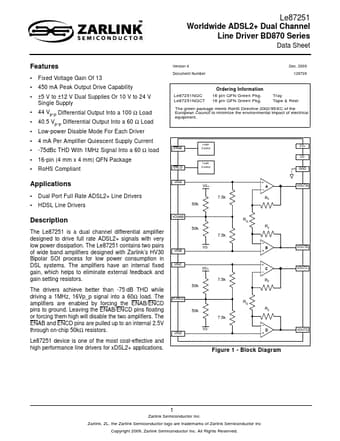

Datasheet Preview: Le87251 📥 Download PDF (164.61kb)
Page 2 of Le87251 Page 3 of Le87251

Le87251 Application

  • Applications VINA + VS+ A
      –
  • Dual Port Full Rate ADSL2+ Line Drivers
  • HDSL Line Drivers 7.5k RF 50k Desc
