MT91610

Programmable Ringing SLIC

MT91610 Features

* Transformerless 2W to 4W conversion Controls battery feed to line Programmable line impedance Programmable network balance impedance Off-hook and dial

MT91610 General Description

The Zarlink MT91610, with an external bipolar driver (Figure 4), provides an interface between a switching system and a subscriber loop. The functions provided by the MT91610 include battery feed, programmable constant current with constant voltage fold over for long loops, 2W to 4W conversion, off-.

MT91610 Datasheet (280.71 KB)

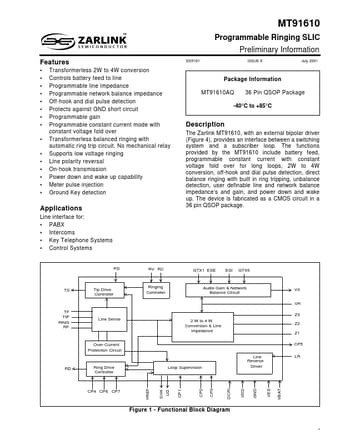

Preview of MT91610 PDF

Datasheet Details

Part number:

MT91610

Manufacturer:

Zarlink Semiconductor

File Size:

280.71 KB

Description:

Programmable ringing slic.
