ZMCT103D

CURRENT TRANSFORMER

ZMCT103D Datasheet (152.49 KB)

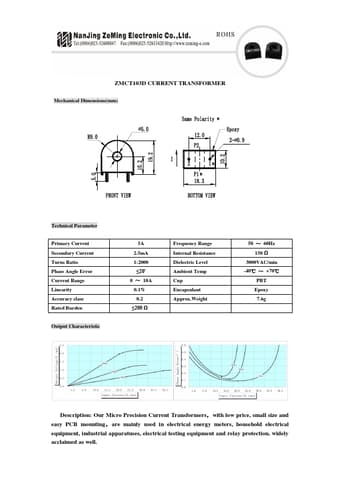

Preview of ZMCT103D PDF

Datasheet Details

Part number:

ZMCT103D

Manufacturer:

ZeMing

File Size:

152.49 KB

Description:

Current transformer.
ZMCT103D CURRENT TRANSFORMER Mechanical Dimensions(mm) Technical Parameter Primary Current Secondary Current Turns Ratio Phase Angle Error Current Ra.

ZMCT103D General Description

Our Micro Precision Current Transformers,with low price, small size and easy PCB mounting,are mainly used in electrical energy meters, household electrical equipment, industrial apparatuses, electrical testing equipment and relay protection, widely acclaimed as well. .
