BFN18 Datasheet (Zetex Semiconductors) - SOT89 NPN SILICON PLANAR HIGH VOLTAGE TRANSISTOR

BFN18, SOT89 NPN SILICON PLANAR HIGH VOLTAGE TRANSISTOR

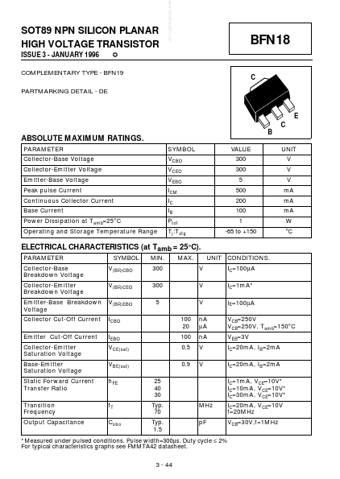

www.DataSheet4U.com SOT89 NPN SILICON PLANAR HIGH VOLTAGE TRANSISTOR ISSUE 3 - JANUARY 1996 7 COMPLEMENTARY TYPE - BFN19 PARTMARKING DETAIL - DE BFN18 C E C ABSOLUTE MAXIMUM RATINGS.

PARAMETER Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Peak pulse Current Continuous Collector Current Base Current Power Dissipation at T amb=25°C Operating and Storage Temperature Range SYMBOL VCBO V CEO V EBO I CM IC IB P tot T j:T stg VALUE 300 300 5 500 200 100 1 -65 to +150 B UNIT
