FXT38C, NPN SILICON PLANAR MEDIUM POWER DARLINGTON TRANSISTOR

NPN SILICON PLANAR MEDIUM POWER DARLINGTON TRANSISTOR ISSUE 1 SEPT 93 .

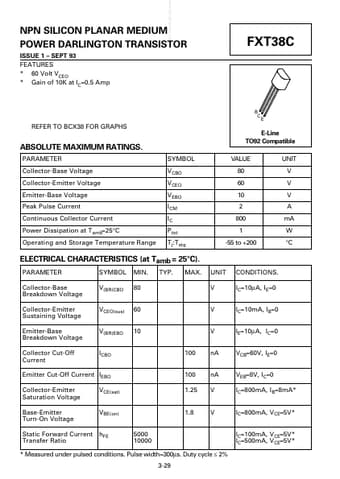

datasheet Preview Page 1 from Datasheet4u.com

FXT38C_ZetexSemiconductors.pdf

FXT38C Datasheet Preview — Preview of FXT38C PDF

Datasheet Details

Part number:

FXT38C

Manufacturer:

Zetex Semiconductors

File Size:

55.29 KB

Description:

NPN SILICON PLANAR MEDIUM POWER DARLINGTON TRANSISTOR

Features

* 60 Volt VCEO
* Gain of 10K at IC=0.5 Amp www. DataSheet4U. com FXT38C B C E REFER TO BCX38 FOR GRAPHS ABSOLUTE MAXIMUM RATINGS. PARAMETER Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Peak Pulse Current Continuous Collector Current Power Dissipation at Tamb=25°C
