ZAMP001 Datasheet, Amplifier, Zetex Semiconductors

ZAMP001 Features

  • Amplifier
  • L and IF frequency band
  • Low noise 5dB @ 1GHz
  • Low current consumption 12mA typical
  • Gain 18dB typical
  • Rising gain
  • IP3 8dBm @ 1G

PDF File Details

Part number:

ZAMP001

Manufacturer:

Zetex Semiconductors

File Size:

120.64kb

Download:

📄 Datasheet

Description:

Mmic wideband amplifier. The ZAMP001 is an low current low noise amplifier designed for L band and IF applications. Although the ZAMP001 has been designed pri

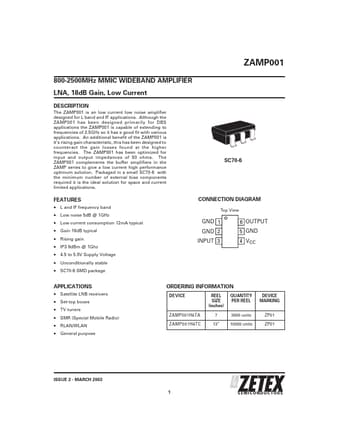

Datasheet Preview: ZAMP001 📥 Download PDF (120.64kb)
Page 2 of ZAMP001 Page 3 of ZAMP001

ZAMP001 Application

  • Applications Although the ZAMP001 has been designed primarily for DBS applications the ZAMP001 is capable of extending to frequencies of 2.5GHz so
