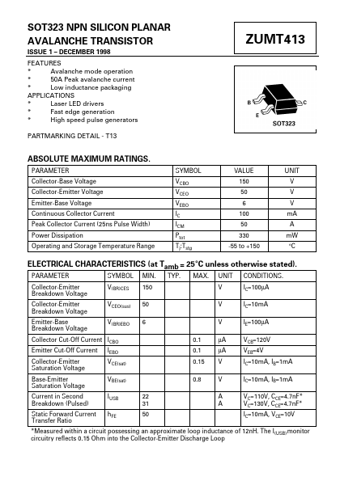

Part number:
ZUMT413
Manufacturer:
Zetex Semiconductors
File Size:
54.38 KB
Description:
Npn silicon planar avalanche transistor.
* Avalanche mode operation
* 50A Peak avalanche current
* Low inductance packaging APPLICATIONS
* Laser LED drivers
* Fast edge generation
* High speed pulse generators PARTMARKING DETAIL - T13 ZUMT413 ABSOLUTE MAXIMUM RATINGS. PARAMETER Collector-Base Voltage Collector-Emi
ZUMT413
Zetex Semiconductors
54.38 KB
Npn silicon planar avalanche transistor.
