ZXTD1M832TC, ZXTD1M832, DUAL 12V PNP LOW SATURATION SWITCHING TRANSISTOR

ZXTD1M832 MPPS™ Miniature Package Power Solutions DUAL 12V PNP LOW SATURATION SWITCHING TRANSISTOR SUMMARY VCEO= -12V; RSAT = 60m ; IC= -4A DESCRIP.
Packaged in the innovative 3mm x 2mm MLP (Micro Leaded Package) outline, these new 4th generation low saturation dual transistors offer extremely low.

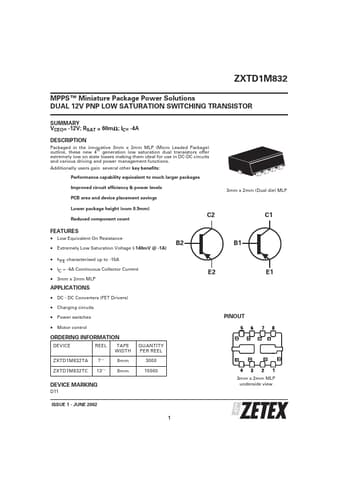

datasheet Preview Page 1 from Datasheet4u.com

ZXTD1M832-ZetexSemiconductors.pdf

ZXTD1M832TC Datasheet Preview — This datasheet PDF includes multiple part numbers: ZXTD1M832TC, ZXTD1M832. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

ZXTD1M832TC, ZXTD1M832

Manufacturer:

Zetex Semiconductors

File Size:

211.18 KB

Description:

DUAL 12V PNP LOW SATURATION SWITCHING TRANSISTOR

Note:

This datasheet PDF includes multiple part numbers: ZXTD1M832TC, ZXTD1M832.
Please refer to the document for exact specifications by model.

Features

* Low Equivalent On Resistance
* Extremely Low Saturation Voltage (-140mV @ -1A)
* hFE characterised up to -10A
* IC = -4A Continuous Collector Current

Applications

* DC - DC Converters (FET Drivers)
* Charging circuits
* Power switches
* Motor control ORDERING INFORMATION DEVICE REEL TAPE WIDTH QUANTITY PER REEL ZXTD1M832TA 7؅؅ 8mm 3000 ZXTD1M832TC 13؅؅ 8mm 10000 B2 DEVICE MARKING D11 B1 E2 E1 PINOUT 3mm x 2mm MLP u
