ZXTP19060CZTA - 60V PNP medium transistor

This page provides the datasheet information for the ZXTP19060CZTA, a member of the ZXTP19060CZ 60V PNP medium transistor family.

Description

Packaged in the SOT89 outline this new low saturation PNP transistor offers extremely low on state losses making it ideal for use in DC-DC circuits and various driving and power management functions.

Features

  • High gain.
  • Low saturation voltage.
  • High peak current.
  • 7V reverse blocking voltage B C E.

📥 Download Datasheet

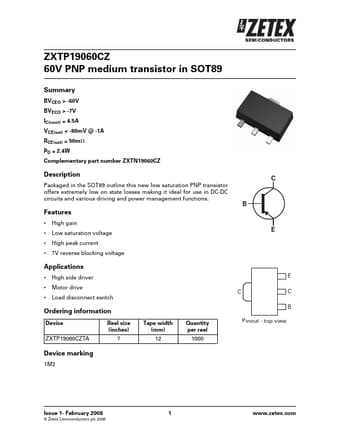

Datasheet preview – ZXTP19060CZTA

Datasheet Details

Part number ZXTP19060CZTA
Manufacturer Zetex Semiconductors
File Size 231.38 KB
Description 60V PNP medium transistor
Datasheet download datasheet ZXTP19060CZTA Datasheet
Additional preview pages of the ZXTP19060CZTA datasheet.

📁 Similar Datasheet

Other Datasheets by Zetex Semiconductors

Full PDF Text Transcription

Click to expand full text
ZXTP19060CZ 60V PNP medium transistor in SOT89 Summary BVCEO > -60V BVECO > -7V IC(cont) = 4.5A VCE(sat) < -80mV @ -1A RCE(sat) = 50m⍀ PD = 2.4W Complementary part number ZXTN19060CZ Description Packaged in the SOT89 outline this new low saturation PNP transistor offers extremely low on state losses making it ideal for use in DC-DC circuits and various driving and power management functions. Features • High gain • Low saturation voltage • High peak current • 7V reverse blocking voltage B C E Applications • High side driver • Motor drive • Load disconnect switch Ordering information Device ZXTP19060CZTA Reel size (inches) 7 Tape width (mm) 12 Quantity per reel 1000 E CC B Pinout - top view Device marking 1M2 Issue 1- February 2008 © Zetex Semiconductors plc 2008 1 www.zetex.
