AZ974 - 40 AMP MINI-ISO AUTOMOTIVE RELAY

Product Overview

Zettler

📥 Download Datasheet

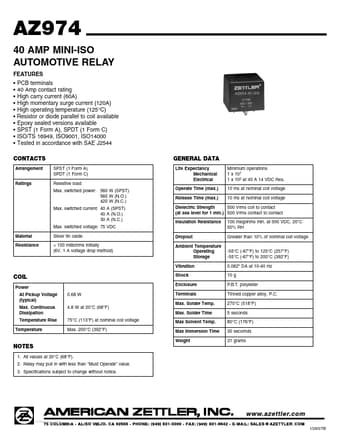

AZ974 40 AMP MINI-ISO AUTOMOTIVE RELAY by Zettler - Datasheet Preview — Datasheet preview – AZ974

Datasheet Details

Part number	AZ974
Manufacturer	Zettler
File Size	142.48 KB
Description	40 AMP MINI-ISO AUTOMOTIVE RELAY
Datasheet	AZ974 Datasheet
Additional preview pages of the AZ974 datasheet.

Product details

Features

PCB terminals 40 Amp contact rating High carry current (60A) High momentary surge current (120A) High operating temperature (125°C) Resistor or diode parallel to coil available Epoxy sealed versions available SPST (1 Form A), SPDT (1 Form C) ISO/TS 16949, ISO9001, ISO14000 Tested in accordance with SAE J2544.
